Industrial PCS 0810-1X1T-01 Shielded Connector With Integrated 10/100 Magnetics

China Industrial PCS 0810-1X1T-01 Shielded Connector With Integrated 10/100 Magnetics supplier

Large Image :  Industrial PCS 0810-1X1T-01 Shielded Connector With Integrated 10/100 Magnetics

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 0810-1X1T-01

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description

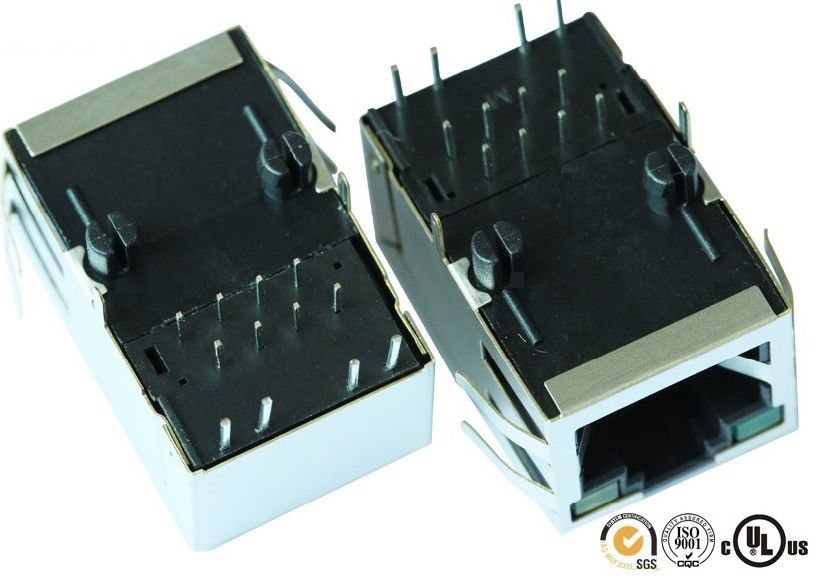

Industrial PCS 0810-1X1T-01 Shielded Connector With Integrated 10/100 Magnetics








Quick Details



  •  0810-1X1T-01
  • Magnetic RJ45 Jack LPJ2012KONL
  • Industrial Ethernet Infrastructure Products
  • Compliant with IEEE 802.3ab for 10/100 Magnetics
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100 Base-TX voip systems
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • ISO9001,SGS,UL,CE,REACH

Features



  • Complies with IEEE standards and all 10/100 Ethernet

  • specifications including 350µH with 8mA DC bias

  • Integrated design conserves valuable board space

  •  Minimum interwinding breakdown voltage of 1500 Vrms

  •  Adaptable, modular design provides higher reliability

  • Reduced pin count for improved crosstalk and optimum

  • PCB trace routingCertified on all major carrier networks,attractive for network interface cards(NICS)

  • Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs

  • Single port, Multi-port and Stackable configurations (Thru-hole/ SMT)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction




Specifications





Characteristics





Industrial PCS 0810-1X1T-01 Shielded Connector With Integrated 10/100 Magnetics

2)SMT,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3

5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )

available

6)PoE/PoE+  (350mA~720mA)
Operation/Application         ×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics
Shielded with/without
Termination Features
EMI Finger with/without
Termination Method

Solder

Body  Features
LED with/without
EMI Fingers - Top and Sides with/without
Latch Orientation Tape UP/Down
PCB Tail Length 3.5±0.5mm

Height Above Board

Optional

Contact  Features
Preloaded YES
Contact Termination Type Through Hole
Connector Style Jack

Cores Number

8
Industry Standards
Lead Free Solder Process Wave solder capable to 265°c
RoHS/elv Compliance History Always was RoHS Compliant
Conditions for Usage
Applies To Printed Circuit Board
Environmental Conditions Office / Premises
Operating Temperature(°c) 0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit 3D15
Status Indicator LED
Left LED Color Optional
Right LED Color Optional
Decoupling capacitor with/without
Rear PCB Ground Tab with/without
Singal Lead Quantity 8

Datasheets

E-mail Inquiry to Summer@link-PP.com

Others Name LPJ2012KONL
