Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways

China Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways supplier

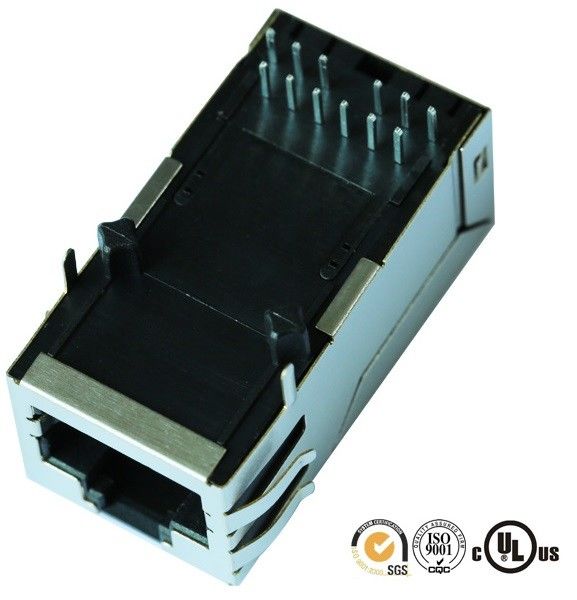

Large Image :  Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 08161X1T32-F

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description

Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways


  • 08161X1T32-F Cross
  • Magnetic RJ45 Jack LPJK4036CNL
  • Industrial Ethernet Infrastructure Products
  • Compliant with IEEE 802.3ab for  10 / 100 /1000Base-TX Magnetics
  • High performance for maximum EMI suppression.
  • LAN interface suitable for voip systems
  • Business Phone Systems
  • ISO9001,SGS,UL,CE,REACH


Characteristics


Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways
2)SMT,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )
available
6)PoE/PoE+  (350mA~720mA)
Operation/Application
×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics

Shielded
with/without
Termination Features

EMI Finger
with/without
Termination Method
Solder
Body  Features

LED
with/without
EMI Fingers - Top and Sides
with/without
Latch Orientation
Tape UP/Down
PCB Tail Length
3.5±0.5mm
Height Above Board
Optional
Contact  Features

Preloaded
YES
Contact Termination Type
Through Hole
Connector Style
Jack
Cores Number
8
Industry Standards

Lead Free Solder Process
Wave solder capable to 265°c
RoHS/elv Compliance History
Always was RoHS Compliant
Conditions for Usage

Applies To
Printed Circuit Board
Environmental Conditions
Office / Premises
Operating Temperature(°c)
0°c~70°c / -40°c~+85°c
Other Features

Magnetic Circuit
3D15
Status Indicator
LED
Left LED Color
Optional
Right LED Color
Optional
Decoupling capacitor
with/without
Rear PCB Ground Tab
with/without
Singal Lead Quantity
8
Datasheets
E-mail Inquiry to Summer@link-PP.com
Others Name
LPJ2012KONL

 P25-156-P9W9
LPJu5202b53nl
101110F9017M440ZA
LPJ0025AGNL
8188P-B1
LPJE651XBHNL
000-5408-37R-LF3  74092010
LP88026
000-7090-37R-LF1
LP1188NLE
000-7093-37R-LF1
LP5007ANLE
000-7365-30R-LF1  749020020
LP5014ANLE
020181MHAM4M408ZA
LPJU4202A64NL
0810-1X1T-01
LPJ2012KONL
0810-1X1T-03
LPJ2026KONL
0810-1x1T-03-F
LPJ2026KONL
0810-1X1T-06
JH8087-6A57R
0810-1X1T-06
LPJ2011KONL
0810-1X4T-06-F
JH48087-6A57R
0811-2X4R-28-F
LPJ47212CNL
0811-2X4R-79-F
JH7434FER
0813-1X1T-23-F
LPJK0071CNL
0813-1X1T-57-F
LPJK0013CNL
08161X1T32-F
LPJK4036CNL
0816-1X1T-M1-F
LPJK6065CNL

Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways

Gigabit MagJack Ext Temp Tap Up 08161X1T32-F In AS-Interface Master / Gateways
Type PCB Mount
Thru-Hole (THT) Or SMT
Number of Ports
1, 2, 4,6,8 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield
Available in Shield and Unshield
Connector Type
RJ45
PoE
Power Over Ethernet Integrated (With Or Without)
Magnetics
Magnetic Integrated
Magnetics Speed
Magnetics 10/100Mbps and 1000Mbps
Packaging
Tray Options
Tab Location
Tab Up and Tab Down Options
LED Color
Optional
Number of Positions
8 and 10 Positions or Others
Number of Contacts
8 and 10 Contacts or Others
RoHS Compliant
Yes
Solder Temperature
230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option
260 degr.C 5-10 SECONDS
High Temperature Option
-40 to +85 Degrees F
Operating Temperature
-0 to 70 Degrees C
