Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: POE RJ45 Connector
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Optional
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Belfuse Part Number: |
0826-1X1T-1-F |
LINK-PP Part Number: |
LPJK2076AONL |
Speed: |
1000 Base-T |
Number Of Ports: |
SINGLE |
Application-Lan: |
Ethernet(PoE+) |
Brand: |
LINK-PP |
Belfuse Part Number: |
0826-1X1T-1-F |
LINK-PP Part Number: |
LPJK2076AONL |
Speed: |
1000 Base-T |
Number Of Ports: |
SINGLE |
Application-Lan: |
Ethernet(PoE+) |
Brand: |
LINK-PP |
Quick Details
Power Over Ethernet (PoE) Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs
Single port, Multi-port and Stackable configurations (Thru-hole)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction
Specifications

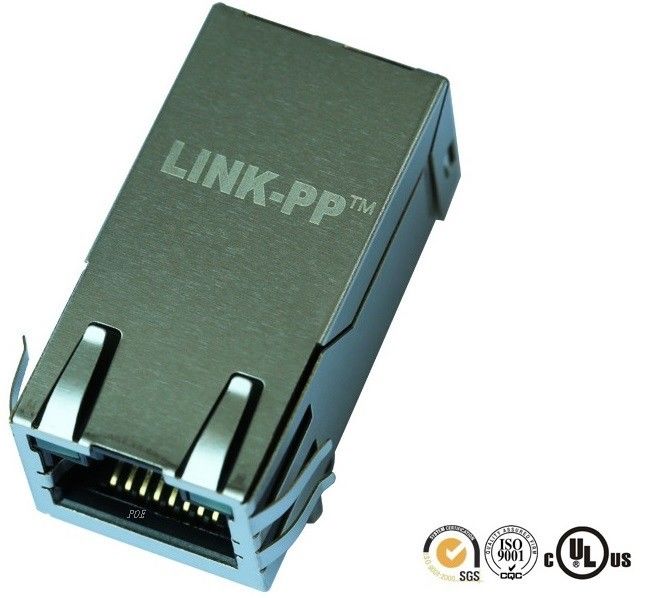

Single Port Cat5e RJ45 Connector with 1000 Base-T Integrated Magnetics & PoE+,Orange&Green/Yellow LED,Tab Up,RoHS | |
LINK-PP Part Number | LPJK2076AONL |
Belfuse Part Number | 0826-1X1T-AC-F / 0826-1X1T-M1-F / 0826-1X1T-1-F |
Application-Lan | ETHERNET(PoE+) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 8 |
Diodes | NO DIODES |
LED Option | ORANGE&GREEN/YELLOW |
Latch | TAB UP |
Number of Ports | 1X1 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 0.531 |
Package Height (mm) | 13.50 |
Package Length (Inches) | 1.30 |
Package Length (mm) | 33.02 |
Package Width (Inches) | 0.654 |
Package Width (mm) | 16.60 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | WITH |
Speed | 1000 BASE-T |
Temperature | 0 TO 70℃ |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.
LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
We Can Also Make These Part Number Below
|
|
XMP-P11-10F0-GY-CT1 | XMH-01R-4-DZ5-1-170 |
XMP-P25-10F0-GY-CT1 | XMH-01-5-PL2-111-1P0 |
XMP-01-4-P25-111-1P0 | XMG-01-4-P23-111-1P0 |
XMP-P31FAT-10F0-NL | XMP-01-4-P25-111-1P0 |
XMH-T02-041-423-012 | XPJG-1-01K-5-PN1-210 |
XMP-9808-81011-140D-T3 | XPJG-1-01A-4-D51-310 |
XMH-9771-8812-S3L2T2-EU | XPJG-1-01A-4-D51-110 |
XMP-XARJ-1032NL | XPJG-1-01-8A-G31-1-PD31 |
XMPH-TRJK0013AHNL-GE1 | XPJG-01J-1-P31-110 |
XMPH-TRJK2001AHNL | XMH-PD2F-10H0-GY |
XMPH-061Q-12F6-GY(RMP-061Q-12F6-GY) | XPJH-RMP-061L-10W6-NL |
XMPH-01D-1-D25-110 | XMP-RMP-LC4P-16F6-NL |
XMPH-01R-4-Q23-170 | XPH-RMP-061L-16W6-2Y |
XMPH-XARJ-8017CNL | XPJH-RMP-061K-16W6-NL |
XMPH-SC851-901NL | XMG-TRJ4190GENL |
XMP-TRJK0010AGNL | XMH-TRJ6100AGNL-SG1 |
XMH-TRJ16003AZNL | XPJH-01D-1-D25-110(XMH-01-1-PP1-111-1P0) |
XMH-TRJ1514AENL | XMP-01M-0-H61-11P |
XMP-TRJ16249AZNL | XMP-01D-4-L61-11P |
XMPH-TRJK4013AHNL | XMP-01J-1-P12-C01 |
XMP-061K-16W6-2Y-M | XPJH-1-01-8C-E3M-4-PD11 |
XMP-01J-1-P12-T01 | XPJH-01D-4-PG1-170-DAQ |
XMP-9774-TF91121-006-CX1 | XPJH-01D-4-P23-170-DAQ-C |
XMP-1104D6014 | XPJH-01D-4-P23-170-DAQ |
XMP-TRJK1046AONL | XPJH-01D-0-PH1-070 |
HRJ-YL1B11M2000BNL | XPJH-01F-4-P25-176 |
XPJH-01L-4-R07-170 | XPJH-01F-5-PN1-170 |
XPJH-01R-0-Q22-07C-OAS | XPJH-01R-0-PJ1-07K-BRD |
XPJH-01R-0-R09-070 | XPJH-RN6-1640F51F |
XPJH-061LAT-10W6-NL | XMH-YL5917222X6PLE |
XPJH-01R-0-F02-070 | XPJH-1-26-8A-S4C-0-PD01 |
XPJH-061KAT-16W6-NL | XPJH-28A-Z-P01-970 |
XPJH-01R-4-D11-171 | XPJH-28D-0-H65-070 |
XPJH-1-01-8A-C41-4-PE11 | XPJH-28D-0-H01-01 |
XPJG-01J-4-P25-110 | XPJH-2-28-8C-T4D-0-PH01 |
XPJG-01J-1-P28-110 | XMH-YL5917122X1LE |
XPJG-01J-4-PH2-110 | XMH-YL5917212X1LE |
XPJG-01K-5-PN1-210 | XPJH-21D-Z-P21-970-MHF |
XPJG-01A-4-D51-310 | XPJH-1-21-8A-Q30-Z-PD21 |
XPJG-01A-4-D51-110 | XPJH-TRJ17002A109NL |
XPJG-1-01-8A-G31-1-PD31 | XPJH-1-21-8A-Q30-4-PD22 |
XMG-TRJ26514AENL | XMH-9760-DH3B120-286 |
XPJH-1208C1009 | XPJH-24A-Z-P01-970 |
XPG-SK02-411008POENL | XMH-YL5917222X4PLE |
XPJG-1-04-8A-G34-4-PD23 | XPJH-24D-Z-P21-970-MHF |
XPJH-04L-8-R08-4V0 | XMH-9760-DH3D120-286 |
XPJH-04L-8-R08-4V0-JU | XPJH-26A-Z-P01-970 |
XPJH-04L-5-R10-1S0 | XMH-9760-DH3G130-286 |
XPJH-04D-1-D34-190 | XPH-TRJ46253AENL |
Gigabit Mag Jack POE RJ45 Connector , Extended Temperature 0826-1X1T-1-F | |
Type PCB Mount | Thru-Hole (THT) |
Number of Ports | 1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8 |
Shield and Unshield | Available in Shield and Unshield |
Connector Type | RJ45 |
PoE | Power Over Ethernet Integrated |
Magnetics | Magnetic Integrated |
Magnetics Speed | Magnetics 10/100Mbps and 1Gigabit |
Packaging | Tray Options |
Tab Location | Tab Up and Tab Down Options |
LED Color | Optional |
Number of Positions | 8 and 10 Positions or Others |
Number of Contacts | 8 and 10 Contacts or Others |
RoHS Compliant | Yes |
Solder Temperature | 230 TO 240 degr.C 5-10 SECONDS |
Solder High-Temp Option | 260 degr.C 5-10 SECONDS |
High Temperature Option | -40 to +85 Degrees F |
Operating Temperature | -0 to 70 Degrees C |
Gigabit Mag Jack POE RJ45 Connector , Extended Temperature 0826-1X1T-1-F
