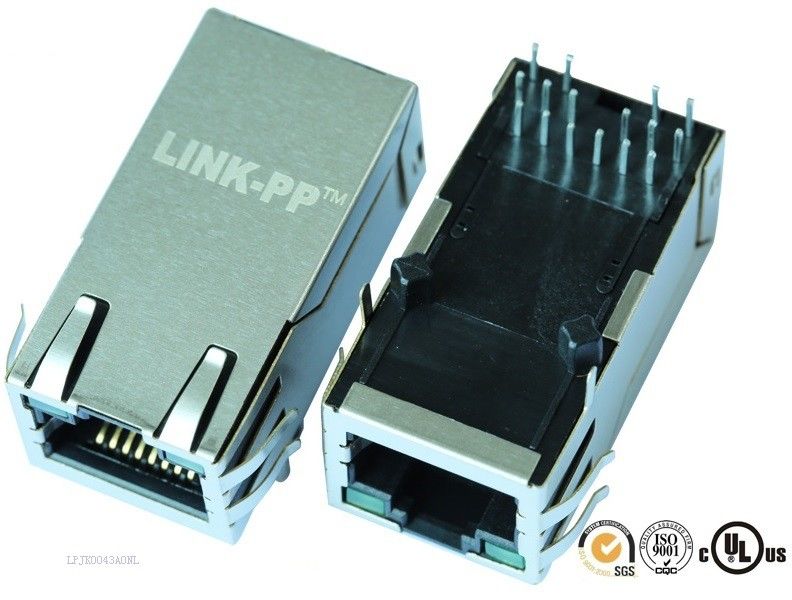

POE RJ45 Connector Embedded Serial-to-Ethernet Modules 0826-1X1T-AD-F

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 0826-1X1T-AC-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Optional

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

poe rj45 pinout

,

dual rj45 jack

POE RJ45 Connector Embedded Serial-to-Ethernet Modules 0826-1X1T-AD-F



POE RJ45 Connector Embedded Serial-to-Ethernet Modules 0826-1X1T-AD-F








Quick Details





  • 0826-1X1T-AD-F
  • Industrial PoE Switch High PoE active Power Over Ethernet Splitter
  • Bel - MagJack Integrated Connector Modules
  • MagJack® Integrated Magnetics Modular Jacks
  • 10/100/1000 Base-T, AutoMDIX
  • Through Hole,Shielded, EMI Finger,90° Angle (Right)
  • RJ45 Connector with integrated transformer & POE
  • ISO9001,SGS,UL,CE,REACH
  • Customers:TI,Intel,GE,Sony,Samsung
  • Other Name: LPJK0043AONL





Features

  • Power Over Ethernet (PoE) Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs

  • Single port, Multi-port and Stackable configurations (Thru-hole)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction




Specifications




Characteristics





Embedded Serial-to-Ethernet Modules 0826-1X1T-AD-F POE RJ45 Connector

2)SMD,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3

5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )

available

6)PoE/PoE+  (350mA~720mA)
Operation/Application         ×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Character
Shielded with/without
Termination Features
EMI Finger with/without
Termination Method

Solder

Body  Features
LED with/without
EMI Fingers - Top and Sides with/without
Latch Orientation Tape UP/Down
PCB Tail Length 3.5±0.5mm

Height Above Board

0.536" (11.15~13.61mm)

Contact  Features
Preloaded YES
Contact Termination Type Through Hole
Connector Style Jack

Cores Number

8
Industry Standards
EoHS/ELV Copliance RoHS compliant,ELV compliant
Lead Free Solder Process Wave solder capable to 265°c
RoHS/elv Compliance History Always was RoHS Compliant
Conditions for Usage
Applies To Printed Circuit Board
Environmental Conditions Office / Premises
Operating Temperature(°c) 0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit 3D15
Status Indicator LED
Left LED Color Green / Yellow / Orange / Red / Blue
Right LED Color Green / Yellow / Orange / Red / Blue
Decoupling capacitor with/without
Rear PCB Ground Tab with/without
Singal Lead Quantity 8

Datasheets

E-mail Inquiry to Summer@link-PP.com








BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.



                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
