LPJK0036AGNL Gigabit Magnetic RJ45 Jack 1X1 LED Cross Jack 5793-1014

China LPJK0036AGNL Gigabit Magnetic RJ45 Jack 1X1 LED Cross Jack 5793-1014 supplier

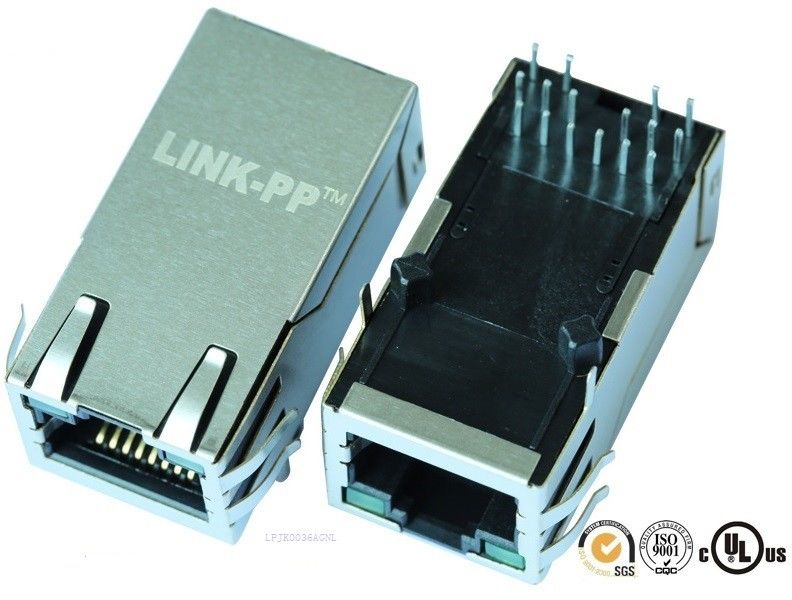

Large Image :  LPJK0036AGNL Gigabit Magnetic RJ45 Jack 1X1 LED Cross Jack 5793-1014

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 85793-1014

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Mfr Package Description: ROHS Mounting Feature: THROUGH HOLE
Application: LAN; 10/100/1000 BASE-T; AUTOMDIX Transformer Type: DATACOM TRANSFORMER

LPJK0036AGNL Gigabit Magnetic RJ45 Jack 1X1 LED Cross Jack 5793-1014



  • 85793-1014
  • Industrial Ethernet Infrastructure Products
  • Meets IEEE 802.3 specification.
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100 Base-TX voip systems
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • ISO9001,SGS,UL,CE,REACH


Characteristics


Gigabit Magnetic RJ45 Jack 1X1 LED  85793-1014 OEM Offer For IP Smarthome
2)SMT,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )
available
6)PoE/PoE+  (350mA~720mA)
Operation/Application
×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics

Shielded
with/without
Termination Features

EMI Finger
with/without
Termination Method
Solder
Body  Features

LED
with/without
EMI Fingers - Top and Sides
with/without
Latch Orientation
Tape UP/Down
PCB Tail Length
3.5±0.5mm
Height Above Board
Optional
Contact  Features

Preloaded
YES
Contact Termination Type
Through Hole
Connector Style
Jack
Cores Number
8
Industry Standards

Lead Free Solder Process
Wave solder capable to 265°c
RoHS/elv Compliance History
Always was RoHS Compliant
Conditions for Usage

Applies To
Printed Circuit Board
Environmental Conditions
Office / Premises
Operating Temperature(°c)
0°c~70°c / -40°c~+85°c
Other Features

Magnetic Circuit
3D15
Status Indicator
LED
Left LED Color
Optional
Right LED Color
Optional
Decoupling capacitor
with/without
Rear PCB Ground Tab
with/without
Singal Lead Quantity
8
Datasheets
E-mail Inquiry to Summer@link-PP.com
Others Name
LPJK0036AGNL

Gigabit Magnetic RJ45 Jack 1X1 LED  85793-1014 OEM Offer For IP Smarthome
Type PCB Mount
Thru-Hole (THT) Or SMT
Number of Ports
1, 2, 4,6,8 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield
Available in Shield and Unshield
Connector Type
RJ45
PoE
Power Over Ethernet Integrated (With Or Without)
Magnetics
Magnetic Integrated
Magnetics Speed
Magnetics 10/100Mbps and 1000Mbps
Packaging
Tray Options
Tab Location
Tab Up and Tab Down Options
LED Color
Optional
Number of Positions
8 and 10 Positions or Others
Number of Contacts
8 and 10 Contacts or Others
RoHS Compliant
Yes
Solder Temperature
230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option
260 degr.C 5-10 SECONDS
High Temperature Option
-40 to +85 Degrees F
Operating Temperature
-0 to 70 Degrees C

LPJK0036AGNL Gigabit Magnetic RJ45 Jack 1X1 LED Cross Jack 5793-1014


LPJK0036AGNL Gigabit Magnetic RJ45 Jack 1X1 LED Cross Jack 5793-1014
