Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 0838-1X1T-W7
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Orientation: |
90° Angle (Right) |
Packaging: |
Tray |
Mounting Type: |
Through Hole |
Termination: |
Solder |
Connector Type: |
RJ45 |
Height Above Board: |
0.550" (13.97mm) |
LED Color: |
Green, Orange - Yellow |
Shield Material: |
Copper Alloy |
Orientation: |
90° Angle (Right) |
Packaging: |
Tray |
Mounting Type: |
Through Hole |
Termination: |
Solder |
Connector Type: |
RJ45 |
Height Above Board: |
0.550" (13.97mm) |
LED Color: |
Green, Orange - Yellow |
Shield Material: |
Copper Alloy |
Quick Details
Certified on all major carrier networks,attractive for Industrial motherboard
Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs
Single port, Multi-port and Stackable configurations (Thru-hole/ SMT)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction
Specifications
|
Characteristics
|

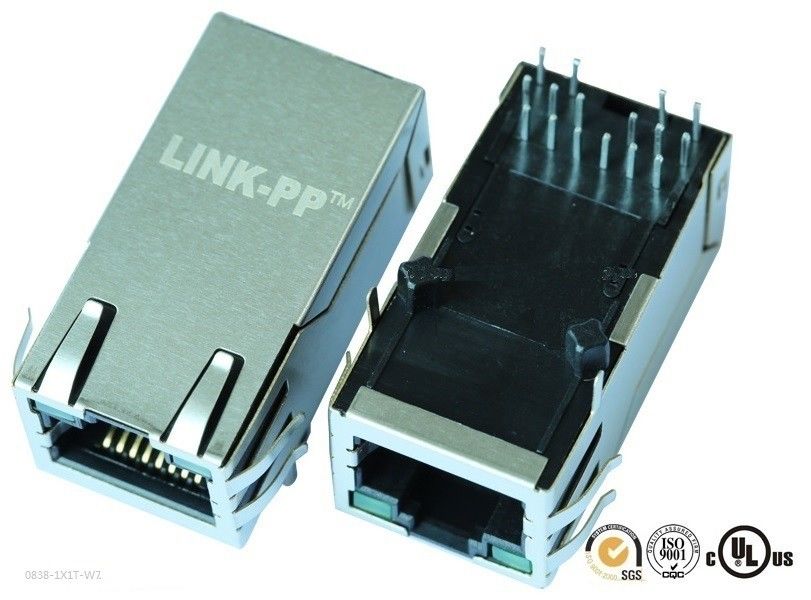

0838-1X1T-W7 CONN Magnetic RJ45 Jack 1000 BASE-T AutoMDIX, Power over Ethernet+ |
| 2)SMT,THT and THT with USB | |
| 3)350μH min,OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available |
|
| 6)PoE/PoE+ (350mA~720mA) | |
| Operation/Application | ×DSL Modems |
| EMbedded PC | |
| LAN Applications | |
| Hub,Router,Switches | |
| AVR,DVR | |
| Electrical Characteristics | |
| Shielded | with/without |
| Termination Features | |
| EMI Finger | with/without |
| Termination Method |
Solder |
| Body Features | |
| LED | with/without |
| EMI Fingers - Top and Sides | with/without |
| Latch Orientation | Tape UP/Down |
| PCB Tail Length | 3.5±0.5mm |
|
Height Above Board |
Optional |
| Contact Features | |
| Preloaded | YES |
| Contact Termination Type | Through Hole |
| Connector Style | Jack |
|
Cores Number |
8 |
| Industry Standards | |
| Lead Free Solder Process | Wave solder capable to 265°c |
| RoHS/elv Compliance History | Always was RoHS Compliant |
| Conditions for Usage | |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
| Other Features | |
| Magnetic Circuit | 3D15 |
| Status Indicator | LED |
| Left LED Color | Optional |
| Right LED Color | Optional |
| Decoupling capacitor | with/without |
| Rear PCB Ground Tab | with/without |
| Singal Lead Quantity | 8 |
|
