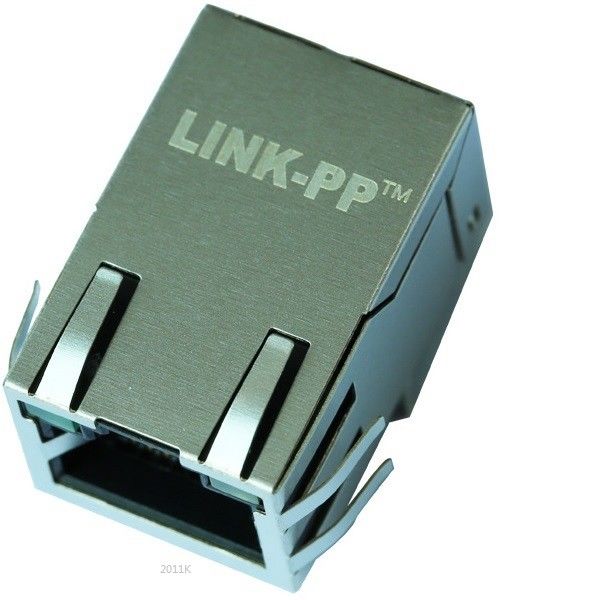

LPJ2011KONL Cross 08B01 X 1T06-F CONN MAGJACK 1PORT 100 BASE-T With Magnetic

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 08B01X1T06-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

LPJ2011KONL Cross 08B01 X 1T06-F CONN MAGJACK 1PORT 100 BASE-T With Magnetic

LPJ2011KONL Cross 08B01 X 1T06-F CONN MAGJACK 1PORT 100 BASE-T With Magnetic



  • 08B01X1T06-F
  • RJ45 Modular Jack
  • Shielded with Filter Magnetic RJ45 Jack For Single Board Computers
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJ2011KONL

SPECIFICATIONS
Mfr Package Description
ROHS COMPLIANT
Status
Active
Transformer Type
DATACOM TRANSFORMER
Application
AUTOMDIX
Approvals
UL
Isolation Voltage
1500 V
JESD-609 Code
e3
Manufacturer Series
08B01X1T06-F
Mounting Feature
THROUGH HOLE MOUNTED
Number of Functions
1
Packing Method
TRAY
Physical Dimension
L25.53XB16.31XH13.49 (mm)
Primary Inductance
350 µH
Terminal Finish
TIN
Turns Ratio (Np:Ns)
1CT:1; 1CT:1
Height
13.49 mm
Length
25.53 mm
Width
16.31 mm
Additional Feature
WITH RJ45 CONNECTOR
