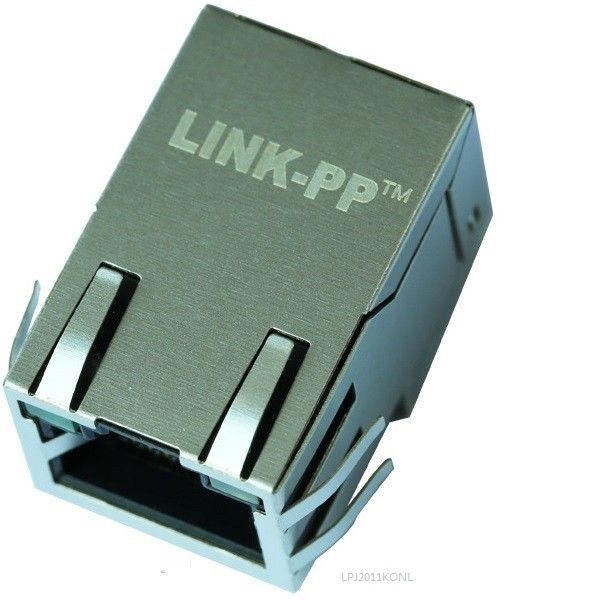

LPJ2011KONL Modular Jack Cross 08B01X1T06-F Rj45 With Magnetics

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 08B01X1T06-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

modular jacks rj45

,

industrial rj45 connector

LPJ2011KONL Modular Jack Cross 08B01X1T06-F Rj45 With Magnetics
LPJ2011KONL  Modular Jack Cross 08B01X1T06-F Rj45 With Magnetics
  • 08B01X1T06-F
  • RJ45 Modular Jack
  • Shielded with Filter Magnetic RJ45 Jack For Single Board Computers
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJ2011KONL

SPECIFICATIONS
Mfr Package Description
ROHS COMPLIANT
Status
Active
Transformer Type
DATACOM TRANSFORMER
Application
AUTOMDIX
Approvals
UL
Isolation Voltage
1500 V
JESD-609 Code
e3
Manufacturer Series
08B01X1T06-F
Mounting Feature
THROUGH HOLE MOUNTED
Number of Functions
1
Packing Method
TRAY
Physical Dimension
L25.53XB16.31XH13.49 (mm)
Primary Inductance
350 µH
Terminal Finish
TIN
Turns Ratio (Np:Ns)
1CT:1; 1CT:1
Height
13.49 mm
Length
25.53 mm
Width
16.31 mm
Additional Feature
WITH RJ45 CONNECTOR

LPJ2011KONL  Modular Jack Cross 08B01X1T06-F Rj45 With Magnetics
Type PCB Mount
Thru-Hole (THT)
Number of Ports
1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield
Available in Shield and Unshield
Connector Type
RJ45
PoE
Power Over Ethernet Integrated Or Without
Magnetics
Magnetic Integrated
Magnetics Speed
Magnetics 10/100Mbps Or 1000Mbps
Packaging
Tray Options
Tab Location
Tab Up and Tab Down Options
LED Color
Optional
Number of Positions
8 and 10 Positions or Others
Number of Contacts
8 and 10 Contacts or Others
RoHS Compliant
Yes
Solder Temperature
230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option
260 degr.C 5-10 SECONDS
High Temperature Option
-40 to +85 Degrees F
Operating Temperature
-0 to 70 Degrees C
