Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 08B01X1T06-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Category: |
Connectors, Interconnects |
Series: |
MagJack® |
Packaging: |
Tray |
Connector Type: |
RJ45 With USB A, Dual |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Shielding: |
Shielded, EMI Finger |
Contact Finish: |
Gold |
Category: |
Connectors, Interconnects |
Series: |
MagJack® |
Packaging: |
Tray |
Connector Type: |
RJ45 With USB A, Dual |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Shielding: |
Shielded, EMI Finger |
Contact Finish: |
Gold |
|
Mfr Package Description
|
ROHS COMPLIANT
|
|
Status
|
Active
|
|
Transformer Type
|
DATACOM TRANSFORMER
|
|
Application
|
10/100 BASE-TX
|
|
Approvals
|
UL
|
|
Isolation Voltage
|
1500 V
|
|
JESD-609 Code
|
e3
|
|
Manufacturer Series
|
08C2-1X1T-03
|
|
Mounting Feature
|
THROUGH HOLE MOUNTED
|
|
Number of Functions
|
1
|
|
Packing Method
|
TRAY
|
|
Physical Dimension
|
26.09mm X 19.1mm X 29.72mm
|
|
Primary Inductance
|
350 µH
|
|
Terminal Finish
|
MATTE TIN
|
|
Turns Ratio (Np:Ns)
|
1CT:1; 1CT:1
|
|
Height
|
29.72 mm
|
|
Length
|
26.09 mm
|
|
Width
|
19.1 mm
|
|

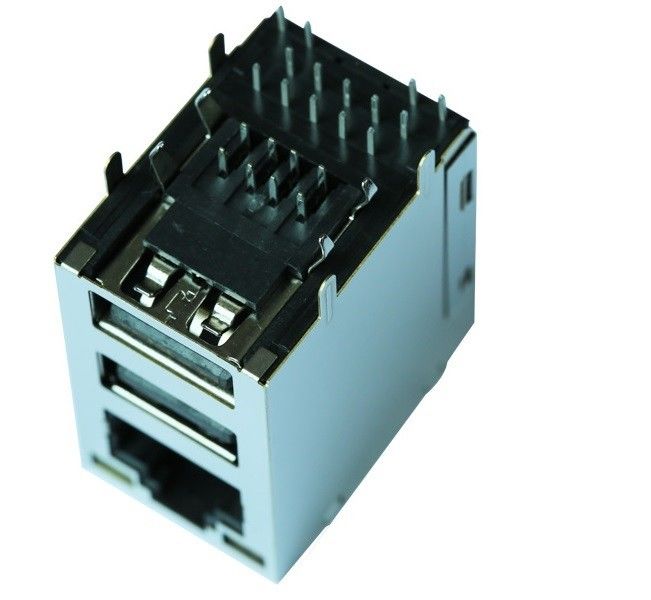

08C2-1X1T-03 CONN MAGJACK 3PORT 100 BASE-T RJ45 with Dual USB LPJU4101AONL
|
|
|
Type PCB Mount
|
Thru-Hole (THT)
|
|
Number of Ports
|
1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
|
|
Shield and Unshield
|
Available in Shield and Unshield
|
|
Connector Type
|
RJ45
|
|
PoE
|
Power Over Ethernet Integrated Or Without
|
|
Magnetics
|
Magnetic Integrated
|
|
Magnetics Speed
|
Magnetics 10/100Mbps Or 1000Mbps
|
|
Packaging
|
Tray Options
|
|
Tab Location
|
Tab Up and Tab Down Options
|
|
LED Color
|
Optional
|
|
Number of Positions
|
8 and 10 Positions or Others
|
|
Number of Contacts
|
8 and 10 Contacts or Others
|
|
RoHS Compliant
|
Yes
|
|
Solder Temperature
|
230 TO 240 degr.C 5-10 SECONDS
|
|
Solder High-Temp Option
|
260 degr.C 5-10 SECONDS
|
|
High Temperature Option
|
-40 to +85 Degrees F
|
|
Operating Temperature
|
-0 to 70 Degrees C
|
