LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector

China LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector supplier
LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector supplier LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector supplier

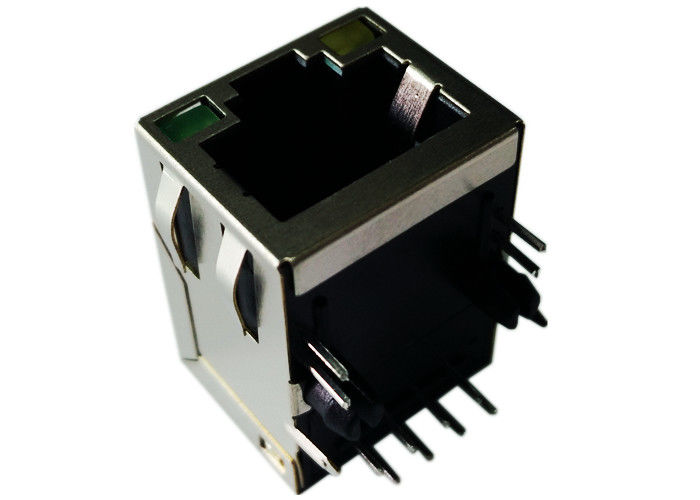

Large Image :  LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 101113F9278M400ZA

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description

LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector




  • 101113F9278M400ZA
  • Bel - MagJack Integrated Connector Modules
  • Shielded with Filter Magnetic RJ45 Jack For Single Board Computers
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJ16221AFNL

Characteristics


LPJ16221AFNL Cross 101113F9278M400ZA Rj45 Right Angle PCB Connector
2)SMT,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )
available
6)PoE/PoE+  (350mA~720mA)
Operation/Application
×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics

Shielded
with/without
Termination Features

EMI Finger
with/without
Termination Method
Solder
Body  Features

LED
with/without
EMI Fingers - Top and Sides
with/without
Latch Orientation
Tape UP/Down
PCB Tail Length
3.5±0.5mm
Height Above Board
Optional
Contact  Features

Preloaded
YES
Contact Termination Type
Through Hole
Connector Style
Jack
Cores Number
8
Industry Standards

Lead Free Solder Process
Wave solder capable to 265°c
RoHS/elv Compliance History
Always was RoHS Compliant
Conditions for Usage

Applies To
Printed Circuit Board
Environmental Conditions
Office / Premises
Operating Temperature(°c)
0°c~70°c / -40°c~+85°c
Other Features

Magnetic Circuit
3D15
Status Indicator
LED
Left LED Color
Optional
Right LED Color
Optional
Decoupling capacitor
with/without
Rear PCB Ground Tab
with/without
Singal Lead Quantity
8
Datasheets
E-mail Inquiry to Summer@link-PP.com
Others Name
LPJ16221AFNL
