Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7498011122
Payment & Shipping Terms
Minimum Order Quantity: 72pcs,576pcs
Price: Supportive & Discounted
Packaging Details: tray= 72pcs, carton= 576pcs
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
7498011122 |
Series: |
WE-RJ45 LAN |
Cross & Datasheet: |
LPJ19911ADNL |
Package: |
Surface-Mount (SMT) |
Applications: |
10/100BASE-T |
Hipot Test: |
2250VDC 1min. |
Industrial Temperature Range: |
-40 °C To +85 °C |
Free Samples: |
Available |
Part Number: |
7498011122 |
Series: |
WE-RJ45 LAN |
Cross & Datasheet: |
LPJ19911ADNL |
Package: |
Surface-Mount (SMT) |
Applications: |
10/100BASE-T |
Hipot Test: |
2250VDC 1min. |
Industrial Temperature Range: |
-40 °C To +85 °C |
Free Samples: |
Available |

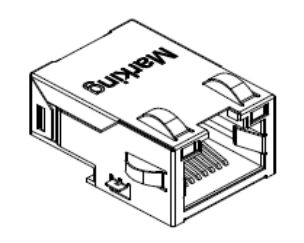

7498011122 (WE-RJ45LAN): 1-port SMT 10/100BASE-T RJ45 jack with integrated LAN transformer, 350µH OCL, Auto-MDIX, −40 to +85°C.
The 7498011122 (WE-RJ45LAN) is a 1-port, surface-mount 10/100BASE-T RJ45 connector with integrated LAN transformer (magnetic + connector). It is Auto-MDIX capable, optimized for SMT/reflow assembly, rated for industrial temperatures, and built with ferrite magnetics and robust shielding for reliable Ethernet links on embedded, industrial and communications boards.
|
Part Number |
Manufacturer Part Number |
Manufacturer |
Description |
|
7498011122 (variants: 7498011122AR / 7498011122R, check suffix) |
LPJ19911ADNL |
LINK-PP |
10/100M SMT RJ45 |
|
|
|||
|
Ports |
Operating temperature |
Applications |
Mounting |
|
1X1 |
-40 °C to +85 °C |
10/100BASE-T (IEEE 802.3u), Auto-MDIX capable. |
SMT / Board-edge (right-angle orientation) |
|
|
|||
|
Orientation |
Termination |
LED Color |
Shielding |
|
180° Angle (Right) |
Solder |
Y/G |
Shielded |
|
Key Features
|
|||
Electrical Specifications
(test conditions: HP/Agilent 4395A, 25 °C, humidity ~33%)
| Parameter | Value | Notes / Test conditions |
|---|---|---|
| Open-circuit inductance (OCL) | 350 µH min. | 100 kHz / 100 mV @ 8 mA DC bias. |
| Turns ratio | 1:1 (Tx) / 1:1 (Rx) ±2% | 100 kHz / 100 mV. |
| Insertion Loss (IL) | ≤ −1.0 dB | 1–100 MHz (max). |
| Return Loss (RL) | ≥ −18 dB (1–30 MHz) ≥ −14 dB (30–60 MHz) ≥ −12 dB (60–80 MHz) ≥ −10 dB (80–100 MHz) | Frequency bands per datasheet. |
| Common-Mode Rejection (CMR) | ≥ −40 dB (1–30 MHz) ≥ −37 dB (30–60 MHz) ≥ −35 dB (60–100 MHz) | High CMR helps EMI performance. |
| Crosstalk (CT) | ≤ −35 dB (1–100 MHz) | Typical magjack performance for 10/100BASE-T. |
| Dielectric / Hipot | 2250 VDC / 1 minute (manufacturer test between specified pins) | See datasheet for exact test points. |
