Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ0011BBNL
Payment & Shipping Terms
Minimum Order Quantity: 5pcs Free Samples
Price: Negotiable
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
P.N: |
LPJ0011BBNL |
Speed: |
100BASE-TX |
Mounting Type: |
THT |
LEDs: |
With |
Shielding: |
Yes |
Original Project: |
BeagleBone Black Board |
P.N: |
LPJ0011BBNL |
Speed: |
100BASE-TX |
Mounting Type: |
THT |
LEDs: |
With |
Shielding: |
Yes |
Original Project: |
BeagleBone Black Board |
| Connector Type | RJ45 Connector with 10/100 Base-T Integrated Magnetics |
|---|---|
| Electrical Specifications @25℃ | |
| Turn Ratio (TX) | 1CT:1CT |
| Turn Ratio (RX) | 1CT:1CT |
| Inductance OCL | 350uH Min @100KHz, 0.1V, 8mA DC BIAS |
| Insertion Loss | -1.0dB MAX @1.0-100MHz |
| Return Loss | -18dB MIN @ 1-30WHz -15dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz -10dB MIN @ 80-100MHz |
| Crosstalk | -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz |
| Common Mode Rejection | -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz |
| Hipot Test | 1500Vrms |
| Operating Temperature Range | 0℃ TO 70℃ |
| Size | |
| Connector Length | 21.25mm |
| Connector Width | 15.9mm |
| Connector Height | 13.3mm |
| Parameters | |
| Number of Ports | 1x1 |
| Tab Direction | Down |
| Data Rate | 100BASE-TX |
| Mounting | THT |
| EMI Tabs | Without |
| LEDs Color |
Green (Left) and Yellow (Right) |
| PoE Function | NONE |
| Termination Style | Solder |
| Entry | SIDE ENTRY |
| LED Indicator Colors | Green (Left) and Yellow (Right) |
| Packaging | Tray |
| Contact Plating | Gold 6 micro-inches min. In contact area. |
| Connector Materials | |
| Housing | Thermoplastic PBT+30%G.F UL94V-0 |
| Contact | Phosphor Bronze C5210R-EH Thickness=0.35mm |
| Pins | Brass C2680R-H Thickness=0.35mm |
| Shield | SUS 201-1/2H Thickness=0.2mm |
| Contact plating | Gold 6 micro-inches min. In contact area. |
In 2012, Texas Instruments launched the hugely popular open-source BeagleBone Black development board to enable affordable access to hardware prototyping. Featuring a low-cost Linux computer, it quickly gained a strong community of makers and developers.
To provide wired Ethernet connectivity, TI chose to integrate a Texas Instruments Ethernet PHY module. However, a reliable and high-quality RJ45 jack was still needed to seamlessly connect to local networks.
That's where the preferred supplier LINK-PP came in. As an expert in network connectivity components for over 20 years, LINK-PP worked closely with TI to identify the ideal connector solution.

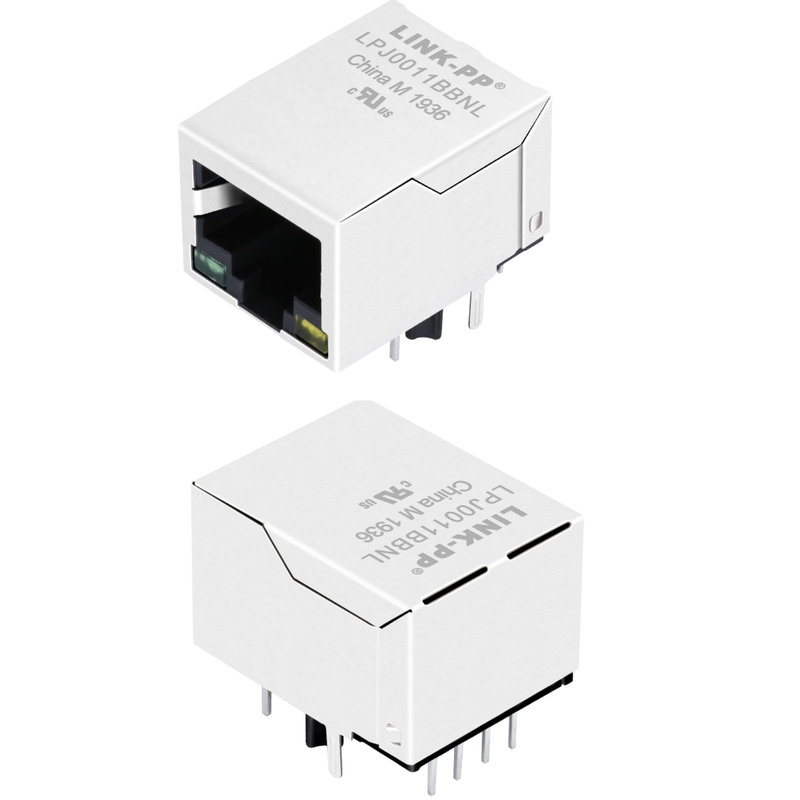

Their LPJ0011BBNL met all requirements with its integrated 1x1 Fast Ethernet design supporting 10/100Mbps data rates. Key features like green/yellow LED status indicators and industry-standard pinout ensured a user-friendly interface.
