Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: ROHS,ISO,REACH,UL Certified
Model Number: LPJG0933H11NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000pcs
Price: $0.09-$3.85
Packaging Details: 50pcs/tray, 1200pcs/carton
Delivery Time: According to Stock Availability
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200Kpcs Per Month
Keywords: |
RJ45 Connector With Magnetics |
Port Configuration: |
1x1 Port |
Gigabit Ethernet Speed: |
1 Gbps |
Connector Type: |
Female |
Application: |
BeaglePlay |
LED Indicators: |
Optional Green, Orange, Yellow |
Integrated Magnetics: |
Build-in |
Ethernet: |
Meets IEEE802.3 Specification |
Keywords: |
RJ45 Connector With Magnetics |
Port Configuration: |
1x1 Port |
Gigabit Ethernet Speed: |
1 Gbps |
Connector Type: |
Female |
Application: |
BeaglePlay |
LED Indicators: |
Optional Green, Orange, Yellow |
Integrated Magnetics: |
Build-in |
Ethernet: |
Meets IEEE802.3 Specification |
| Title |

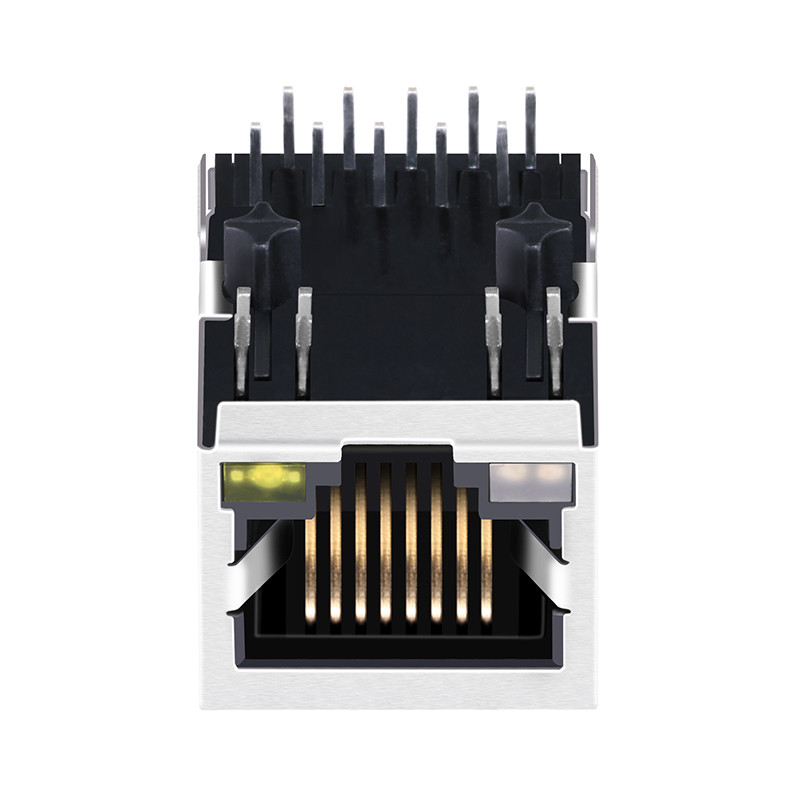

LPJG0933H11NL Female RJ45 Connector With Magnetics Designed For BeaglePlay |
|---|---|
| overview | Designed to support applications, such as SOHO(ADSL Modems), Lan-on-Motherboard(LOM), Hub, and Switches. |
|
Turn Ratio (+/-5%) |
Pri: Sec=1CT:1CT |
| Inductance OCL | 350uH MIN @100KHz/0.1V, 8mA DC Bias |
| Hipot Test | 1500Vrms MIN |
| Cross talk | -30dB MIN @1-100MHz |
| Temperature Range | 0°C - 70°C |
| Application |
BeaglePlay open-source single-board computer |
| Mounting Type | Through Hole |
| Ethernet Speed | 10/100/1000 Base-T |
| LED | Green, Orange, Yellow Emitting Color |
| Number of Ports | 1x1 Port |
| Connector Gender | Female RJ45 Connector |
| Port Orientation | 90° Right Angle |
| Shield EMI Tabs | Without |
| Customization Service | Support |
BeaglePlay Board has a strong 64-bit, quad-core processor. It can run many programs at the same time. The board offers various connectivity options, including WiFi, Gigabit Ethernet, and sub-GHz wireless. BeaglePlay board needs top-tier components to match its capabilities.
The LPJG0933H11NL meets this demand by providing reliable 1000Base-T speed. Its 90-degree right-angle PCB side entry design suits BeaglePlay's compact design. This Magnetic Rj45 Jack offers a wide array of applications and advantages.
Versatile Applications:
The LPJG0933H11NL Gigabit Ethernet connector is designed to be flexible. With versatility in mind, it's well-suited for various real systems. These applications include building and industrial automation gateways, digital signage, and HMI devices. It is also suitable for BeagleConnect sensor gateways.
Advantages of 1000Base-T RJ45 Socket:
In short, the LPJG0933H11NL1000Base T RJ45 Connector helps BeaglePlay Boards work well. It provides effortless connectivity, outstanding performance, and versatility for various applications. You can have confidence in LINK-PP's expertise.
Q1: What is LINK-PP's primary focus as a manufacturer?
A: LINK-PP is a professional manufacturer. We specialize in designing and manufacturing magnetic components. Our main focus is on Magnetic Rj45 Jack and LAN transformers.
Q2: What are your core product offerings?
A: Our main product categories include:
10/100M/1G/2.5G/5G/10G network transformers
10/100M/1G/2.5G/5G/10G RJ45 connectors
Optical transceivers
T1/E1/T3/E3 transformers
ISDN/xDSL transformers
Audio transformer series
Q3: What are the applications for Magnetic RJ45 Connector?
A: Here are some common applications:
1. Connect networking devices to access the internet and share resources.
2. Transfer data and communications between network devices.
3. Provide network connectivity and data exchange for IoT devices.
4. Facilitate internet connectivity for consumer electronics such as smart TVs and streaming devices.
5. Transmit data for medical device monitoring and diagnostics.
Q4: How do you ensure quality and competitiveness?
A: LINK-PP maintains strict quality control and offers competitive prices. Besides, our product accuracy and compatibility lead the industry.
