Model Number: 48025-1090
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Competitive
Packaging Details: Tray&Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
48025-1090 |
Made In China: |
SM-LPJ6014AWNL |
Apllication: |
RJ45 With Integrated Magnetics |
Original Munafactuer: |
LINK-PP |
Product Family: |
Modular Jacks / Plugs |
Samples: |
Free Available |
Part Number: |
48025-1090 |
Made In China: |
SM-LPJ6014AWNL |
Apllication: |
RJ45 With Integrated Magnetics |
Original Munafactuer: |
LINK-PP |
Product Family: |
Modular Jacks / Plugs |
Samples: |
Free Available |
|
Part Number
|
Made In China
|
Manufacturer
|
Description
|
|
48025-1090
|
SM-LPJ6014AWNL
|
LINK-PP
|

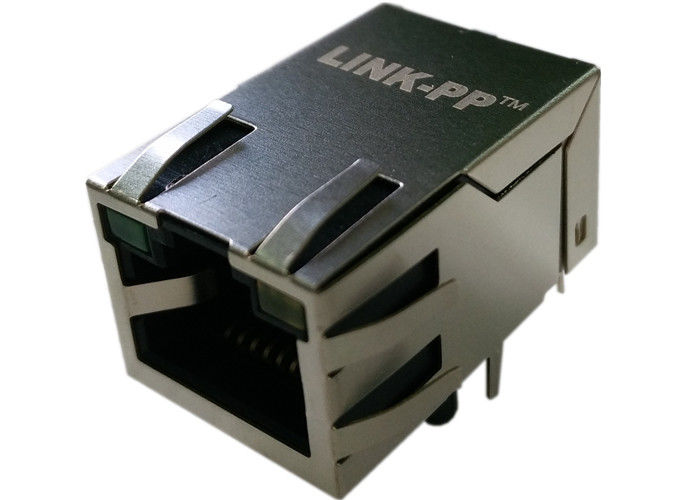

Modular Jack With Integrated Magnetics With LEDS
|
|
|
|||
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Rj45
|
10/100 Mbps
|
Thru-Hole
|
|
|
|||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
90° Angle (Right)
|
Solder
|
G/G
|
Shielded
|
|
48025-1090 TEST NOTES(25±5℃)
1.TR:(100KHz,100mV); TX=1CT:1CT±3% RX=1CT:1CT±3%P2.LX:(100KHz,100mV,8mA,DC Bias) PINS:(P1,P3),(P4,P6)=350uH MIN 3.HIPOT: PINS(P1,P2,P3)TO (J1,J2)=1500VAC PINS(P4,P5,P6)TO (J3,J6)=1500VAC 4.INSERTION LOSS: -1.0dB MAX @ 1.0MHz TO 65MHz 5.RETURN LOSS: -20dB MIN @ 1MHz TO 10MHz -16dB MIN @ 10MHz TO 30MHz -12dB MIN @ 30MHz TO 60MHz -10dB MIN @ 60MHz TO 100MHz 6.CROSS TALK: -40dB MIN @ 1MHz TO 30MHz -35dB MIN @ 30MHz TO 60MHz -30dB MIN @ 60MHz TO 100MHz 7.COMMON TO COMMON MODE REJECTION: -30dB MIN @ 1MHz TO 50MHz -20dB MIN @ 50MHz TO 150MHz 8.Operating Temperature: -40℃～+85℃. |
|||
