Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL, ROHS, Reach, ISO
Model Number: 6605814-6
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Series: |
Magnetic Jack |
Port Configuration: |
1x1 |
Shielding: |
Shielded |
Mounting Angle: |
Right Angle |
Termination Style: |
Through Hole |
AutoMDIX: |
Support |
Series: |
Magnetic Jack |
Port Configuration: |
1x1 |
Shielding: |
Shielded |
Mounting Angle: |
Right Angle |
Termination Style: |
Through Hole |
AutoMDIX: |
Support |
Part Number | Number of Ports | Manufacturer | Description |

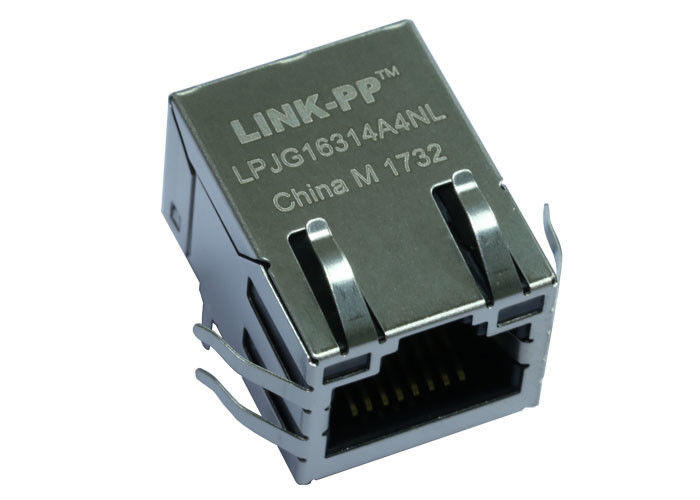

LPJG16314A4NL Cross Tyco 6605814-6 | Single Port | LINK-PP | 10/100M/1000Base-T RJ45 Ethernet Connector with magnetics |
| |||
Gender | Latch Orientation | EMI-Finger | Mounting Type |
Jack (Female) | Tab up | With | Thru-Hole |
| |||
Orientation | Termination | LED Color | Shielding |
90° Angle (Right) | Solder | G/Y & G/Y | Shielded |
NOTES : 4. The Magnetics Are Symmetrical And Support AUTO-MDI/MDIX.
| |||
INSERTION LOSS (IL): 1.1dB MAX From 0.5MHz to 100MHz
RETURN LOSS(RL):
18dB MIN From 0.5MHz to 40MHz
12-20LOG(f/80)dB MIN From 40.1MHZ to 100MHZ
CROSSTALK ATTENUATION:
35dB MIN From 0.5MHz to 40MHz
33-20LOG(f/50)dB MIN From 40.1MHZ to 100MHZ
COMMON MODE REJECTION RATIO (CMRR): 30dB MIN From 0.5MHz to 100MHz
ISOLATION VOLTAGE: 2250VDC (MAX) for 60 Seconds with a rise time of 500V/Sec.
The 250 OHM LED Resistors are optional, please see the Chart for the presence or absence of LED resistors. If the LED without 250 OHM resistors is driven with a constant current of approximately 20mA.
LED COLOR:
DOMINANT WAVELENGTH( A D): GREEN 568 nm TYP. at IF=20mA
FORWARD VOLTAGE(VF): GREEN 2.2V TYP. at IF=20mA
DOMINANT WAVELENGTH( A D): YELLOW 588 nm TYP. at IF=20mA
FORWARD VOLTAGE(VF): YELLOW 2.1V TYP.at IF=20mA
DOMINANT WAVELENGTH( A D): ORANGE 605 nm TYP. at IF=20mA
FORWARD VOLTAGE(VF): ORANGE 2.1V TYP. at IF=20mA
If the LED with 250 OHM resistors, the LED is driven with 5V Voltage, and the MAX operating current is 20mA.
LED COLOR:
DOMINANT WAVELENGTH( A D): GREEN 568 nm TYP. at VF=5V
FORWARD CURRENT(IF): GREEN 12 mA TYP. at VF=5V
DOMINANT WAVELENGTH( A D): YELLOW 588 nm TYP. at VF=5V
FORWARD CURRENT (IF): YELLOW 13 mA TYP. at VF=5V
