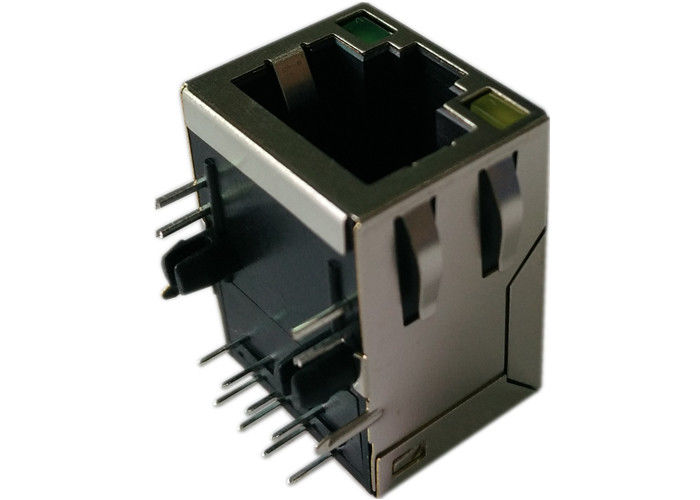

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL

Name: 5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL
Brand: LINK-PP
SKU: 5-6605728-1
Rating: 4.9 (117 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 5-6605728-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Part Number:	5-6605728-1	Made In China:	SM-LPJ16115A28NL
Cross&Datasheet:	LPJ16115A28NL	Apllication:	10/100/ Base-T
Original Munafactuer:	LINK-PP	Samples:	Free Active

Part Number:	5-6605728-1
Made In China:	SM-LPJ16115A28NL
Cross&Datasheet:	LPJ16115A28NL
Apllication:	10/100/ Base-T
Original Munafactuer:	LINK-PP
Samples:	Free Active

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL

5-6605728-1 Electrical Specifications @25℃
1.Impedance:100 OHMS
2.Turns Ratio:
TX=1CT∶1 RX=1CT∶1CT
3.Inductance OCL: 350uH Min
@100KHz,0.1Vrms,8mA DC Bias.
4.Insertion Loss:
0.5MHz-100MHz: -1.1dB Max
5.Return Loss(dB Min):
0.5-30MHz:-18
30.1-60MHz:-[18-20log(f/30)]
60.1-80MHz:-12
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-[33-20log(f/50)]
7.Common Mode Rejection Ratio:
0.5-100MHz:-30dB Min
8.Isolation Voltage: 1500Vrms
9.Operating Temperature: 0℃～70℃.

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL 0
