Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: MOX-RJ45-1815GYV
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
MOX-RJ45-1815GYV |
Specification: |
MOX-RJ45-1815GYV |
Cross&Datasheet: |
LPJ16249A28NL |
Apllication: |
10/100 Base-TX POE |
Original Munafactuer: |
LINK-PP |
Project Application: |
Embedded Serial-to-Ethernet Modules |
Part Number: |
MOX-RJ45-1815GYV |
Specification: |
MOX-RJ45-1815GYV |
Cross&Datasheet: |
LPJ16249A28NL |
Apllication: |
10/100 Base-TX POE |
Original Munafactuer: |
LINK-PP |
Project Application: |
Embedded Serial-to-Ethernet Modules |

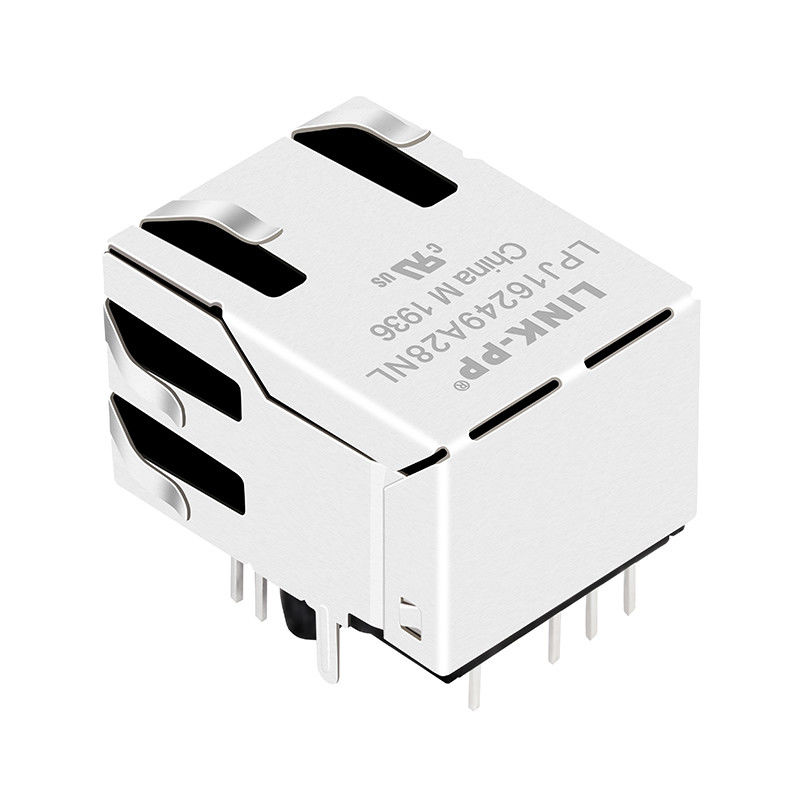

| RJ45 Magnetic Jack with 10/100 Base-T Integrated Magnetics,Green/Orange LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJ16249A28NL |
| Application-Lan | ETHERNET( PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 6 |
| Diodes | NO DIODES |
| LED Option | GREEN/ORANGE |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.530 |
| Package Height (mm) | 13.45 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.628 |
| Package Width (mm) | 15.95 |
| Pin Type | PRESS FIT |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
|
