Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector

China Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector supplier

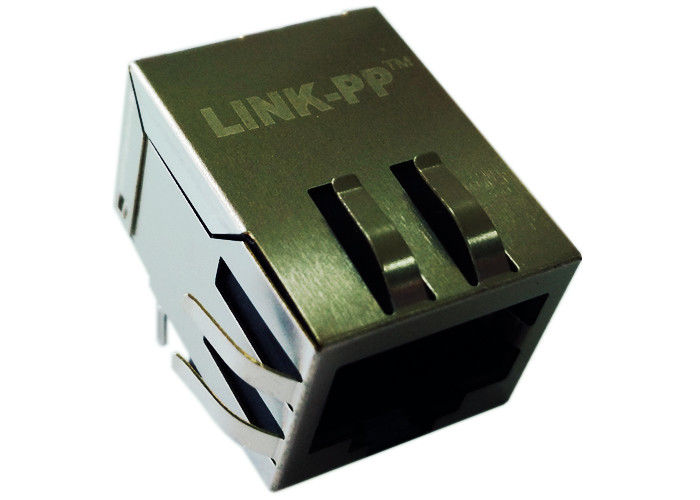

Large Image :  Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJ0011GFNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specification: LPJ0011GFNL P/N: LPJ0011GFNL
Ethernet: 1x10/100Mbps Turn Ratio: 1CT:1CT
Hi-pot: 1500VRMS Samples: Available

Green LED Rj45 , LPJ0011GFNL10/100Mbps Ethernet 90 Degree 8Pins Connector



Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.



NOTES: Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
