Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HFJ11-S114ERL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Spec: |
HFJ11-S114ERL |
Specification: |
HFJ11-S114E |
Cross&Datasheet: |
LPJ0215CNL |
Apllication: |
10 Base-TX |
Original Munafactuer: |
LINK-PP |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
HFJ11-S114ERL |
Specification: |
HFJ11-S114E |
Cross&Datasheet: |
LPJ0215CNL |
Apllication: |
10 Base-TX |
Original Munafactuer: |
LINK-PP |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

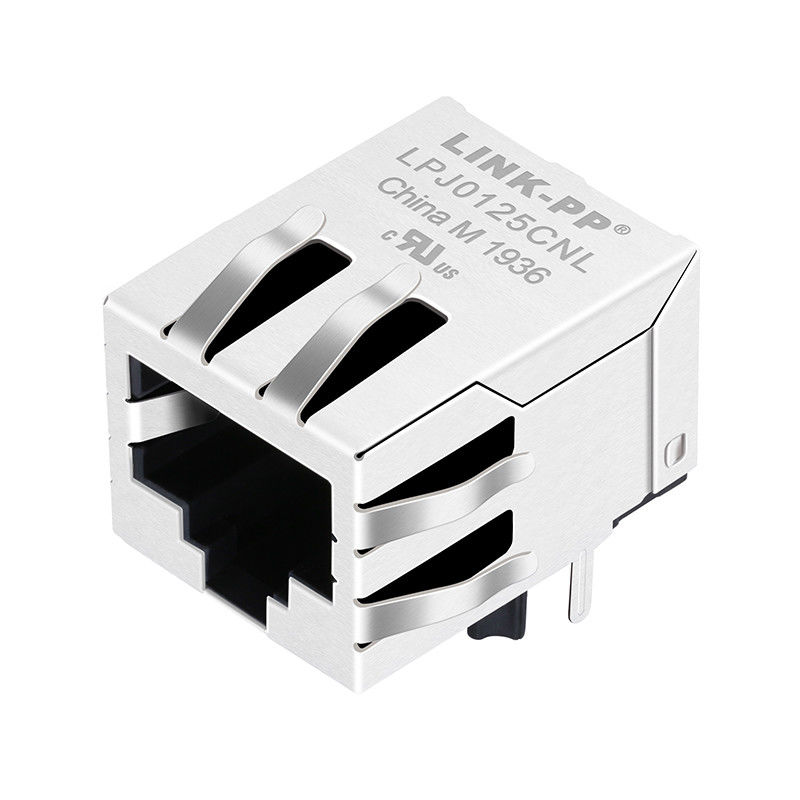

Single port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS | |
LINK-PP Part Number | LPJ0125CNL |
Halo Part Number | HFJ11-S114 / HFJ11-S114E / HFJ11-S114ERL |
Application-Lan | ETHERNET(NoN PoE) |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 4 |
Diodes | NO DIODES |
LED Option | WITHOUT LEDS |
Latch | TAB DOWN |
Number of Ports | 1X1 |
PCB Mount Angle | SIDE ENTRY |
Package Height (mm) | 13.50 |
Package Length (mm) | 21.30 |
Package Width (mm) | 15.90 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | WITH |
Speed | 10/100 BASE-T |
Temperature | 0 TO 70℃ |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
