Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR911105A
Document: LPJ0011FBNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Negotiable & Discounted
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
HR911105A |
Number Of Ports: |
1 |
Package: |
Through Hole |
Operating Temperature: |
0℃~+70℃ |
PoE: |
10/100 Mbps |
Speed: |
Wireless Interface Port |
Isolation Voltage: |
1500Vrms (min) |
OCL: |
350µH Min @100 KHz, 8 MA |
Part Number: |
HR911105A |
Number Of Ports: |
1 |
Package: |
Through Hole |
Operating Temperature: |
0℃~+70℃ |
PoE: |
10/100 Mbps |
Speed: |
Wireless Interface Port |
Isolation Voltage: |
1500Vrms (min) |
OCL: |
350µH Min @100 KHz, 8 MA |

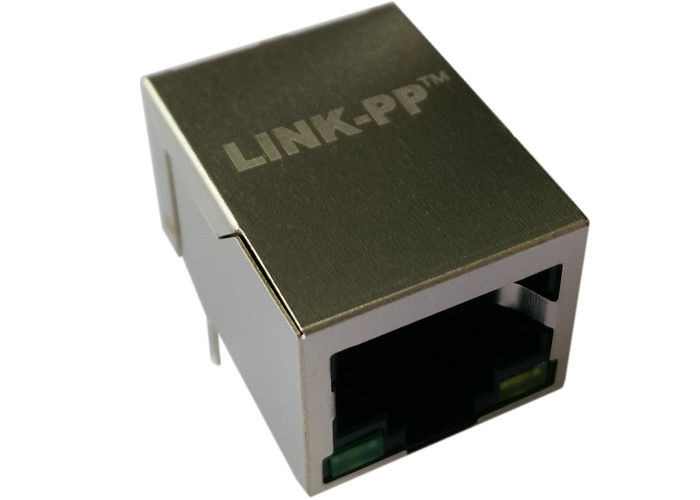

HR911105A is a cost-effective 10/100Base-T RJ45 connector with integrated magnetics, LED indicators, and 1500Vrms isolation, ideal for compact Ethernet designs.
| Parameter | Value |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Port Configuration | 1×1 |
| Mounting Type | Through-Hole (THT) |
| Orientation | Right Angle (Side Entry) |
| Shielding | Shielded (metal housing) |
| LED | Green + Yellow |
| Contact Plating | Gold plated |
| Housing | High-temp thermoplastic |
| Parameter | Typical Specification | Condition |
|---|---|---|
| Turns Ratio (1CT:1CT) | Signal Transformer | – |
| OCL (Open Circuit Inductance) | ≥ 350 µH | @ 100 kHz, 100 mV, 8 mA |
| Isolation Voltage | 1500 Vrms | Primary to Secondary |
| Insertion Loss | ≤ –1.0 dB | 0.3–100 MHz |
| Return Loss | ≥ 20 dB (1–10 MHz) ≥ 16 dB (10–30 MHz) ≥ 12 dB (30–60 MHz) ≥ 10 dB (60–80 MHz) | IEEE 802.3 compliant |
| Crosstalk (NEXT) | ≥ 40 dB (1–30 MHz) ≥ 35 dB (30–60 MHz) ≥ 30 dB (60–100 MHz) | – |
| Common Mode Rejection | ≥ 30 dB (1–50 MHz) ≥ 20 dB (50–150 MHz) | – |
| Operating Temperature | 0 °C to +70 °C | – |
