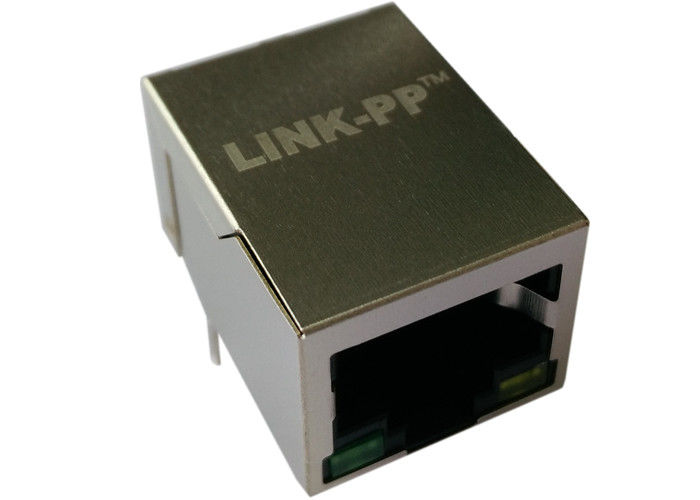

HR911105A Single Port Rj-45 Magnetic Jack 10/100BT Tab-down With LED

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HR911105A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Part Number:
HR911105A
Made In China:
SM-LPJ0011FBNL
Apllication:
10/100 Base-T Ethernet
Family:
Rj45 With Transformer
Samples:
5PCS Free
Project Application:
Wireless Interface Port
Part Number:
HR911105A
Made In China:
SM-LPJ0011FBNL
Apllication:
10/100 Base-T Ethernet
Family:
Rj45 With Transformer
Samples:
5PCS Free
Project Application:
Wireless Interface Port
HR911105A Single Port Rj-45 Magnetic Jack 10/100BT Tab-down With LED
HR911105A Single Port Rj-45 Magnetic Jack 10/100BT Tab-down With LED



Single Port 8P8C RJ45 Connectors with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJ0011FBNL
Hanrun Part Number HY911105A / HR911105A
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
