Model Number: LU1T516-43LF
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
LU1T516-43 LF |
P/N: |
LPJ0025ABNL |
Mechanical: |
21.3x16.0x11.0mm |
Apllication: |
10/100Base-T |
Mounting: |
THT |
Samples: |
Free |
Specification: |
LU1T516-43 LF |
P/N: |
LPJ0025ABNL |
Mechanical: |
21.3x16.0x11.0mm |
Apllication: |
10/100Base-T |
Mounting: |
THT |
Samples: |
Free |
|
Specification
|
P/N
|
Manufacturer
|
Description
|
|
LU1T516-43 LF
|
LPJ0025ABNL
|
LINK-PP
|

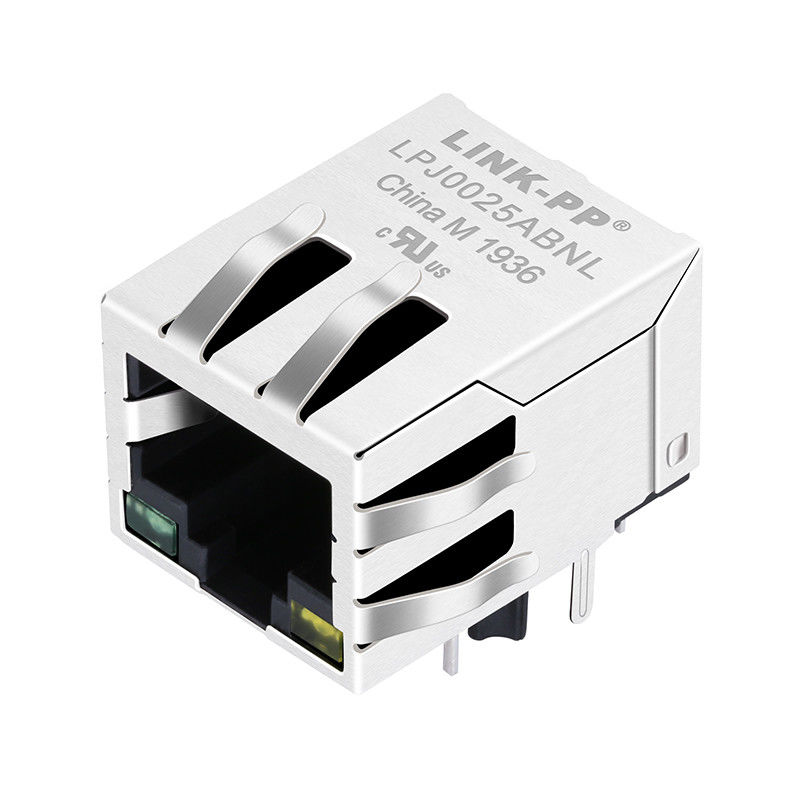

Filter rj45 10/100Mbps
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
| Magjack |
LINK-PP RJ45
|
10/100 Mbps
|
Thru-Hole
|
|
LU1T516-43 LF Design for 100 BASE transmission over UTP-5 cable.
|
|||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
90° Angle (Right)
|
Solder
|
Green/Yellow
|
Shielded
|
Key Features:
Materials:
|
|||
| Parameter | Specification |
|---|---|
| Data Rate | 10/100 BASE-TX |
| Inductance (OCL) | 350 µH Minimum |
| OCL Test Condition | 100KHz / 0.1V with 8mA DC bias applied |
| Turns Ratio (±5%) | Tx = 1CT:1 / Rx = 1CT:1CT |
| Insertion Loss | -1.15 dB Max (0.3 MHz to 100 MHz) |
| Isolation (HI-POT) | 1500 Vrms Minimum |
| Interwinding Capacitance (CW/W) | 28 pF Max |
| Leakage Inductance (L.L) | 0.4 µH Max |
| Frequency Range | Return Loss |
|---|---|
| 30 MHz | -16 dB |
| 40 MHz | -14 dB |
| 50 MHz | -13.5 dB |
| 60 MHz | -13 dB |
| 80 MHz | -10 dB |
| Frequency Range | Cross Talk |
|---|---|
| 0.3 – 30 MHz | -40 dB |
| 30 – 60 MHz | -35 dB |
| 60 – 100 MHz | -30 dB |
| Frequency Range | CMR |
|---|---|
| 1 – 30 MHz | -30 dB |
| 30 – 60 MHz | -25 dB |
| 60 – 125 MHz | -20 dB |
Built to withstand frequent mating cycles and harsh operational conditions.
|
