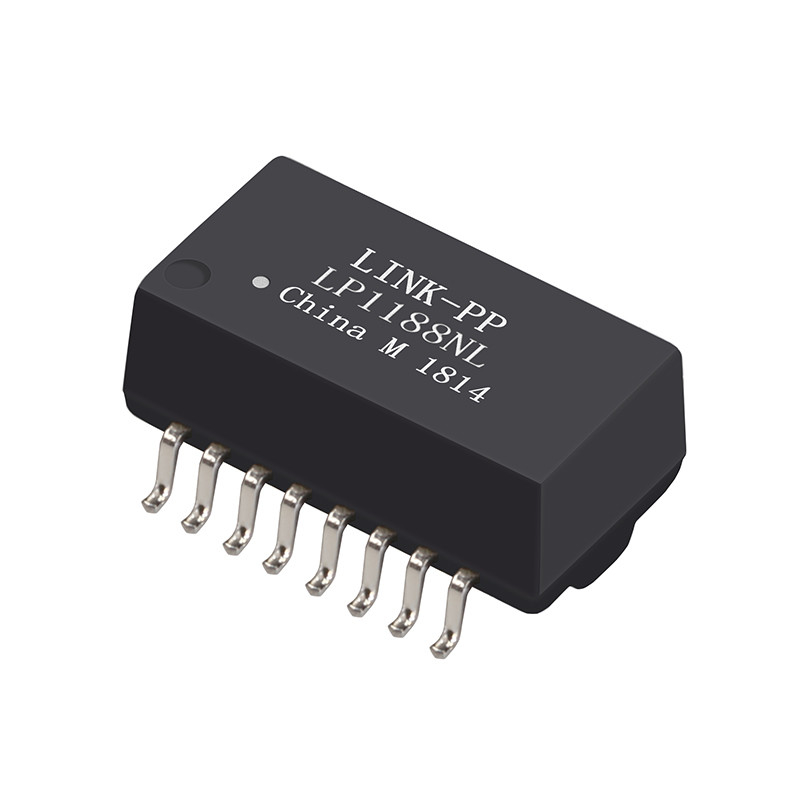

LP1188NL 10/100base-T Ethernet Magnetics Module 16-Pin SMD Single Port

Overview of LP1188NL Single-Port SMD Ethernet Isolation Transformer Module


The LP1188NL is a high-performance, single-port Ethernet magnetics module designed to support 10/100 Base-T network data rates. Housed in a compact 16-pin surface-mount (SMD) module, it offers galvanic isolation, impedance matching, and signal integrity functionality between an Ethernet PHY and the twisted-pair cable interface. It is engineered for reliability in embedded, industrial, and consumer Ethernet applications.


Key Features

• Supports 10 Base-T and 100 Base-TX network speeds.
• Single-port (1x10/100) configuration, 16-pin SMD footprint.
• Turns ratio: 1CT : 1CT (both transmit and receive sides) for optimized coupling.
• Operating temperature range: –40 °C to +85 °C for broad environmental tolerance.
• Hi-Pot (isolation) rating typically 1500 Vrms (minimum) for equipment safety & insulation.
• Compliant with IEEE 802.3 (10/100 Base-T) standards, RoHS, REACH, UL, ISO9001/14001 certified (via LINK-PP manufacturing).
• Open-frame high-performance magnetics design, optimized for EMI suppression, compact board layout, and SMT reflow compatibility.

Electrical Specifications @25°C

Design & Selection Considerations

• Confirm network speed requirement: If your system requires Gigabit (1000 Base-T) or higher, select accordingly; LP1188NL is optimized for 10/100 Base-T.
• Ensure PCB layout accommodates transformer placement near PHY or RJ45 magnetics path for best signal integrity.
• Consider the isolation voltage rating relative to the system safety/regulatory environment.
• Verify the suitability of the reflow profile (SMT) and the maximum component height, considering enclosure constraints.
• If PoE (Power-over-Ethernet) capability is required, ensure magnetics and RJ45 interface are rated accordingly (LP1188NL is for NON-PoE).
