Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP5007NL
Document: LP5007NL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 400pcs
Price: $0.06-$0.6
Packaging Details: Tape & Reel,
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000 per Month
Part Number: |
LP5007NL |
Pin Number: |
24-Pin |
OCL: |
350uH Min |
Isolation Voltage: |
1500 Vrms |
Data Rate: |
100Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
Non |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
0°C To +70°C |
Part Number: |
LP5007NL |
Pin Number: |
24-Pin |
OCL: |
350uH Min |
Isolation Voltage: |
1500 Vrms |
Data Rate: |
100Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
Non |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
0°C To +70°C |

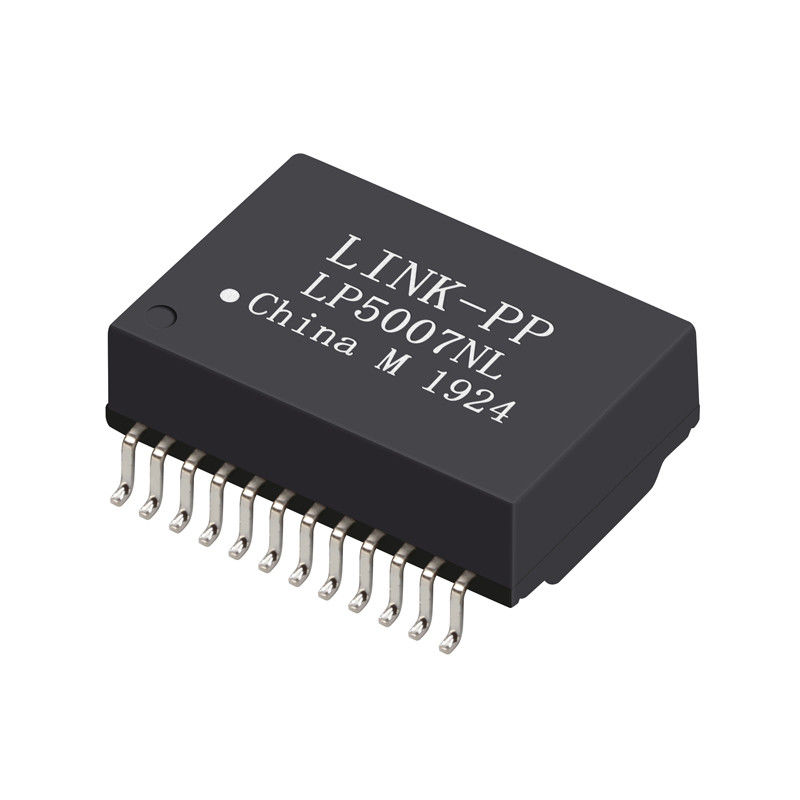

LP5007NL 1000Base-T SMT LAN transformer module, single-port 24-pin design with 350µH inductance, 1500V isolation, wide –40°C to +85°C range. Compatible with Pulse H5007NL, WE 749020011A, Belfuse S558-5999-P3-F, ideal for industrial Ethernet and RJ45 modules.
| Title |
1000base-t Magnetics Modules Designed to Support Gigabit Transceivers |
||
|
Type |
P/N |
Manufacturer |
Description |
|
Gigabit Transformer |
LP5007NL |
LINK-PP |
1000BASE-T SINGLE PORT 1:1 |
|
|
|||
|
Series |
Interface |
Ethernet Application |
Turn Radio |
|
Magnetics Modules |
Isolation and Data |
10/100/1000 Base-T |
1:1 |
|
|
|||
|
Length |
Width |
Height |
Standards Met |
|
17.55mm |
12.20mm |
6.00mm |
IEEE 802.3, UL 94 V-0 |
The LP5007NL 1000M BASE-T LAN Transformer Module is designed for 10/100/1000Base-T RJ45 connector modules and Ethernet PHY interfaces. Featuring excellent signal integrity, stable inductance, high isolation voltage, and wide industrial temperature range, LP5007NL is ideal for routers, switches, industrial Ethernet, automation, IP cameras, and IoT networking equipment.
This model offers full electrical and mechanical compatibility with industry-leading parts such as Pulse H5007NL / H5007NLT, WE 749020011A, Belfuse S558-5999-P3-F, and Halo TG1G-S002NZ, making it a drop-in replacement solution for high-volume SMT production.
With stable 350 µH inductance, low insertion loss, and optimized return loss, LP5007NL ensures clean eye diagrams, low jitter, and reliable 1000Base-T data transmission.
The optimized DCMR and crosstalk performance effectively suppress common-mode noise and EMI, supporting robust communication in electrically noisy industrial environments.
Designed for 0 °C to +70 °C operating temperature, LP5007NL delivers long-term stability in harsh environments such as factory automation, outdoor IP cameras, and industrial gateways.
LP5007NL provides pin-to-pin and electrical compatibility with major industry models, including:
This ensures seamless second-source qualification and risk-free supply chain diversification.
| Parameter | Symbol | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Turns Ratio | n | 1CT : 1CT | — | 1:1 | ±5% | — |
| OCL Inductance | L | 100 kHz, 100 mV, 8 mA DC | 350 | — | — | µH |
| Insertion Loss | IL | 1–100 MHz | — | — | –1.0 | dB |
| Return Loss | RL | 1–30 MHz | –18 | — | — | dB |
| Return Loss | RL | 40 MHz | –16 | — | — | dB |
| Return Loss | RL | 50 MHz | –12 | — | — | dB |
| Return Loss | RL | 60–80 MHz | –10 | — | — | dB |
| Crosstalk | CT | 1–100 MHz | –30 | — | — | dB |
| Differential to Common Mode Rejection | DCMR | 1–100 MHz | –30 | — | — | dB |
| Hi-Pot | — | 60 s | 1500 | — | — | Vrms |
The LP5007NL 1000M BASE-T LAN Transformer Module provides a high-reliability, SMT-optimized, drop-in compatible solution for Gigabit Ethernet RJ45 connector and PHY designs. With excellent electrical performance, industrial-grade temperature range, and broad cross-reference compatibility, LP5007NL ensures stable networking performance and secure supply chain sourcing.
| Parameter | Description |
|---|---|
| Manufacturer | LINK-PP |
| Part Number | LP5007NL |
| Product Type | LAN Transformer Module |
| Ports | 1 |
| Speed | 10/100/1000Base-T |
| Mounting | SMT |
| Packaging | Tape & Reel |
| Status | Active |
As a professional Magnetic components manufacturer, LINK-PP introduces a new range of magnetics modules for LAN. They are optimized for use with LAN(local area network) Applications. Other suitable applications included Hub, Router and Switches. Ethernet Protocol is the common basis for data communication. These 1000base-t Magnetics Modules follow IEEE 802.3 Standard. Different transmission speeds can be distinguished: 10 Base-T with 10 Mbit/s, 100 Base-T with 100 Mbit/s, and 1000 Base-T with 1 Gbit/s transmission speed. LP5007NL provides various Turn Ratios and 350uH min OCL. It supports an extended operating temperature range from 0 °C to +70 °C.
