Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP5014NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$0.8
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
LP5014NL |
Compatible Brands: |
Wurth |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Dual |
PoE: |
Non |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
Part Number: |
LP5014NL |
Compatible Brands: |
Wurth |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Dual |
PoE: |
Non |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |

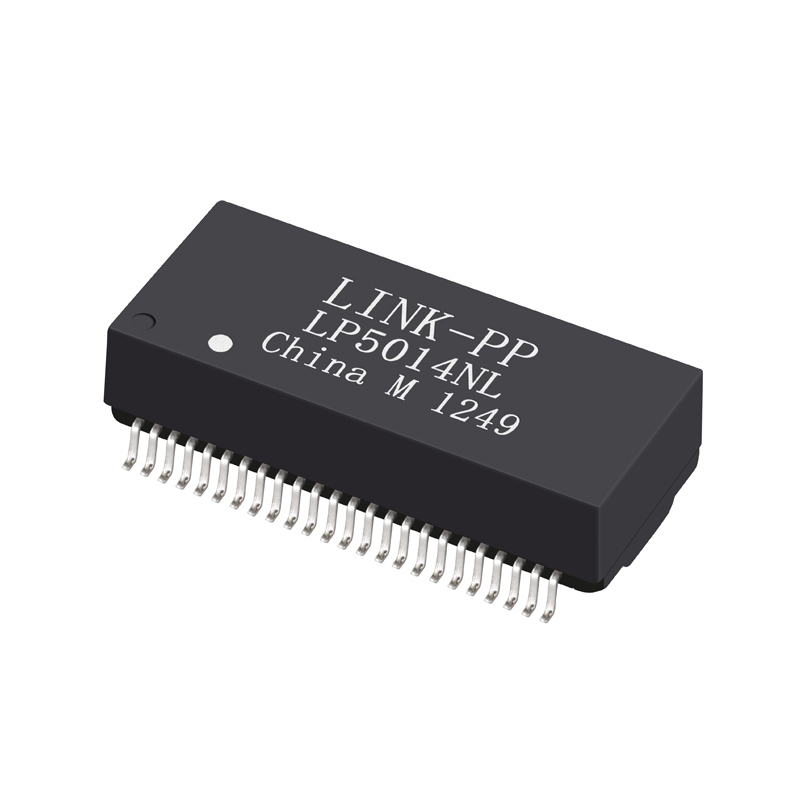

The LP5014NL from LINK-PP is a dual-port Gigabit Ethernet isolation transformer designed for 10/100/1000Base-T LAN applications.
It provides excellent signal integrity, high isolation, and robust EMI suppression performance — ideal for network interface cards, switches, routers, and industrial Ethernet systems.
| Parameter | Details |
|---|---|
| Part Number | LP5014NL |
| Manufacturer | LINK-PP |
| Description | Dual Port 1000BASE-T Ethernet Transformer, 1:1 Turns Ratio, SMT Package |
| Series | XFMR 1000BASE-T Dual Port 1:1 SMT |
| Transformer Type | Isolation and Data Interface Transformer |
| Application | 10/100/1000Base-T Ethernet (Non-PoE) |
| Turns Ratio (TX / RX) | 1CT : 1CT |
| Construction | Open Frame |
| Cores per Port | 16 |
| Mounting Type | Surface Mount (SMT) |
| Dimensions (L × W × H) | 28.00 mm × 16.20 mm × 7.00 mm |
| Operating Temperature | –40 °C to +85 °C |
| Package Height (inch/mm) | 0.276" / 7.00 mm |
| Package Length (inch/mm) | 1.102" / 28.00 mm |
| Package Width (inch/mm) | 0.638" / 16.20 mm |
| Speed | 1000BASE-T |
| Number of Ports | Dual |
| Automatic Polarity Detection | Supported (Auto-MDI/MDIX) |
| RoHS / REACH Compliance | Yes |
| Isolation Voltage | 1500 Vrms (min) |
| Unit Price | Contact LINK-PP Sales for a quotation |
| Typical Use Cases | Ethernet Switches, NICs, Routers, Media Converters, Gateways |
| Parameter | Typical Specification |
|---|---|
| Insertion Loss | 1–100 MHz: ≤ 1.0 dB (max) |
| Return Loss (min) | 1–30 MHz: 18 dB 40 MHz: 18 dB 50 MHz: 16 dB 60–80 MHz: 12 dB 100 MHz: 10 dB |
| Crosstalk (min) | 30 MHz: 45 dB 60 MHz: 40 dB 100 MHz: 35 dB |
| DCMR (min) | 30 MHz: 43 dB 60 MHz: 37 dB 100 MHz: 33 dB |
| Isolation Voltage | ≥ 1500 Vrms |
| Operating Temperature | –40 °C ~ +85 °C |
