Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LP2019ANL
Document: LP2019ANL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3800000PCS/Month
Part Number: |
LP2019ANL |
Specification: |
LP2019ANL |
Mounting: |
SMD |
Apllication: |
10/100base-T PoE |
Measure: |
12.70x9.30x6.20mm |
Samples: |
Free |
Data Rate: |
10/100Base-TX |
Number Of Channels/Ports: |
Single |
PoE: |
PoE+ |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
Part Number: |
LP2019ANL |
Specification: |
LP2019ANL |
Mounting: |
SMD |
Apllication: |
10/100base-T PoE |
Measure: |
12.70x9.30x6.20mm |
Samples: |
Free |
Data Rate: |
10/100Base-TX |
Number Of Channels/Ports: |
Single |
PoE: |
PoE+ |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |

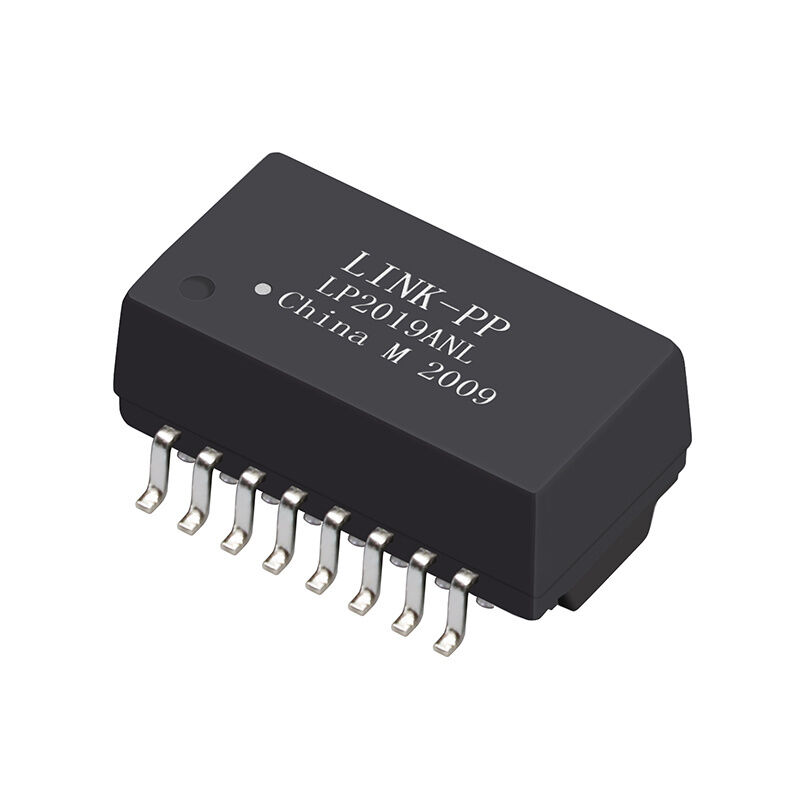

The LP2019ANL is a single-port 10/100BASE-T Ethernet LAN transformer designed for PoE+ applications. Featuring an open-frame SMT design, it provides stable signal integrity, 1CT:1CT transformer ratios, and reliable isolation performance. It is fully compatible with major industry brands and maintains identical electrical characteristics to the NL version. With a wide operating temperature range and support for AutomDX, the LP2019ANL is ideal for PoE-enabled network devices such as IP cameras, VoIP phones, and industrial Ethernet equipment.
| Category | Specification |
|---|---|
| Model | LP2019ANL |
| Type | LAN Transformer |
| Status | Active |
| Compatible Brands | Bothhand, Halo, Hanrun, LINK-PP, Pulse, WE |
| Core Features | PoE+ Supported, AutomDX Compatible, Same as NL Version |
| Ports | Single Port |
| Ethernet Speed | 10/100 BASE-T |
| Pin Count | 16 Pins |
| Mounting Type | Surface Mount |
| Construction | Open Frame |
| Package Type | Tape & Reel |
| Parameter | Specification |
|---|---|
| Operating Current | 350mA |
| Turns Ratio (RX/TX) | 1CT:1CT (1:1 TX, 1:1 RX) |
| Cores per Port | 4 |
| RX/TX Configuration | T, C, S |
| Operating Temperature | -40℃ to +85℃ |
| Application | Ethernet (PoE+) |
| Dimension / Info | Specification |
|---|---|
| Package Height | 0.226" / 5.75 mm |
| Package Length | 0.500" / 12.70 mm |
| Package Width | 0.366" / 9.30 mm |
| Net Weight (per unit) | 0.001 kg |
| Standard Pack Quantity | 750 pcs/Reel |
| Quantity per Carton | 4500 pcs |
| Carton Size | 37 × 37 × 25 cm |
| Gross Weight per Carton | 6.8 kg |
| Item | Details |
|---|---|
| Current Stock | 81,014 Units |
| Lead Time (In Stock) | 1–2 Working Days |
| Lead Time (Out of Stock) | 4–6 Weeks |
| Shipping Cost | $29.47 |
| Quantity | Unit Price |
|---|---|
| 1 Unit | $1.08 |
