Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP6062ANL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
LP6062ANL |
P/N: |
LP6062ANL |
Mounting: |
SMD |
Apllication: |
100/1000base-T POE |
Dimension: |
17.70x15.80x6.60mm |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LP6062ANL |
P/N: |
LP6062ANL |
Mounting: |
SMD |
Apllication: |
100/1000base-T POE |
Dimension: |
17.70x15.80x6.60mm |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
Specifications |
P/N |
Manufacturer | Description |

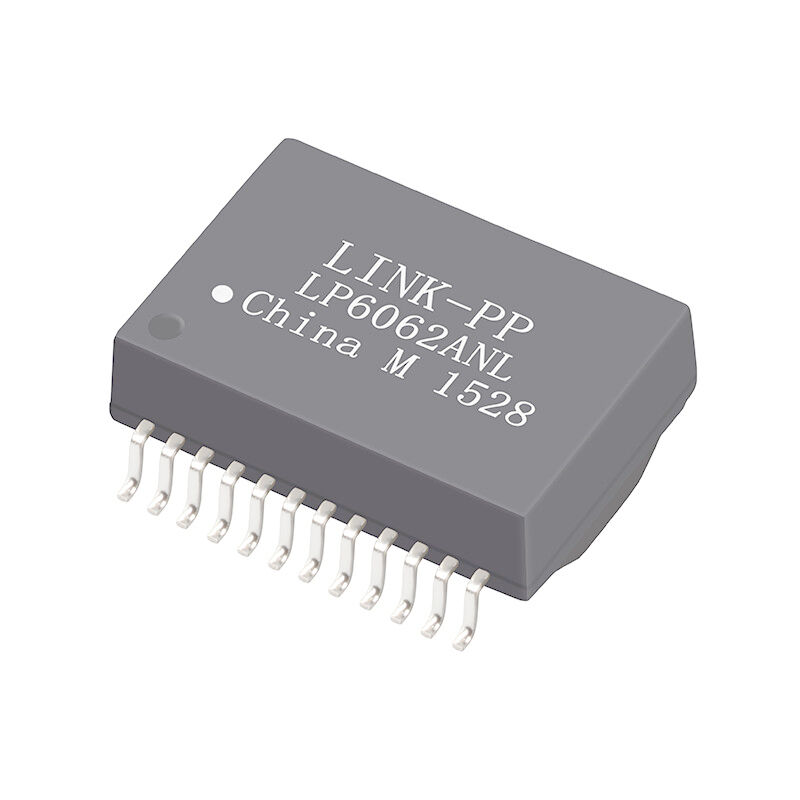

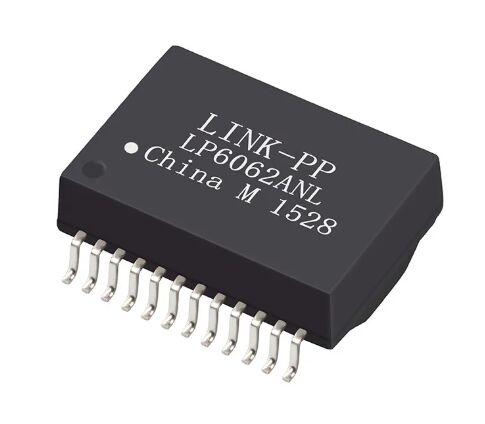

| LP6062ANL | LP6062ANL | LINK-PP |
24pins XFMR 1000BASE-T SINGLE PORT 1:1 SMT POE
|
| Series | Transformer Type | Applications | Turn Radio |
| Transformer | Isolation and Data Interface | 10/100/1000 Base-T | 1:1 |
| Mounting Type | Size / Dimension | Height - Seated (Max) | Unit Price (USD) |
| Surface Mount | 17.70mm L x 15.80mm | 6.60mm | 60% Discounted |
Detailed Information:
| Gigabit POE Transformer LP6062ANL 1000Base-T Magnetic Single Port Application | |
| LINK-PP Part Number | LP6062ANL |
| Speed | 100/1000BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.260 |
| Package Height (mm) | 6.600 |
| Package Length (Inches) | 0.697 |
| Package Length (mm) | 17.70 |
| Package Width (Inches) | 0.650 |
| Package Width (mm) | 16.510 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Other Magnetic Available
10/100M POE/POE+ Magnetic (Single,Dual SMT)
10/100/1000 Dual POE/POE+ Magnetics
Welcome to send RFQ
