Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP6062ANL
Document: LP6062ANL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$1.2
Packaging Details: T&R
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
P/N: |
LP6062ANL |
Type: |
PoE+ LAN Transformer |
Hipot: |
1500Vrms 1mA 1Second |
Dimension: |
17.60x12.20x6.00mm |
Max Reflow Temperature: |
250°C For 5 Seconds |
Compatible Brands: |
Pulse |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
PoE+ |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
P/N: |
LP6062ANL |
Type: |
PoE+ LAN Transformer |
Hipot: |
1500Vrms 1mA 1Second |
Dimension: |
17.60x12.20x6.00mm |
Max Reflow Temperature: |
250°C For 5 Seconds |
Compatible Brands: |
Pulse |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
PoE+ |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |

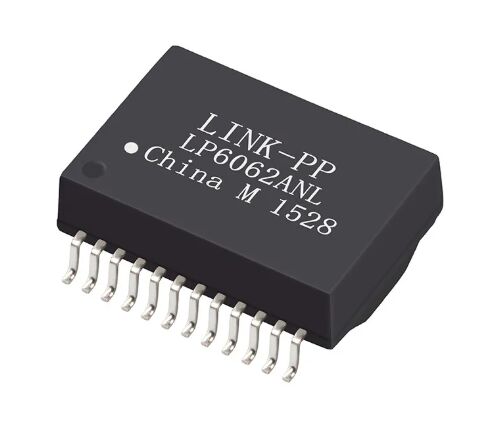

The LINK-PP LP6062ANL is a high-performance Gigabit Ethernet LAN transformer module designed for 10/100/1000BASE-T applications with PoE+ (IEEE 802.3at) support. Engineered for reliability, signal integrity, and EMI performance, this 24-pin magnetic module is ideal for networking equipment, SOHO devices, LOM designs, industrial systems, and telecom applications.
| Parameter | Specification |
|---|---|
| Turns Ratio (TX/RX) | 1CT:1CT ±5% |
| OCL (100 kHz, 100 mV, 11 mA) | ≥ 350 µH |
| Insertion Loss (1–100 MHz) | ≤ –1.2 dB |
| Return Loss | 1–30 MHz: ≥ –16 dB30–60 MHz: ≥ –12 dB60–80 MHz: ≥ –10 dB80–100 MHz: ≥ –8 dB |
| Crosstalk (1–100 MHz) | ≥ –30 dB |
| Common-Mode Rejection (1–100 MHz) | ≥ –30 dB |
| Balance DC Line Current | Max 720 mA @ 57 VDC continuous |
| Hipot | 1500 Vrms, 1mA, 1 sec |
| Operating Temperature | −40°C to +85°C |
LINK-PP products comply with major global standards, ensuring safety, reliability, and environmental responsibility:
Our high-precision production flow ensures stable electrical performance and consistent quality across all LAN Magnetics & RJ45 solutions.
State-of-the-art test systems guarantee every LAN transformer meets industry-level EMI, signal integrity, and reliability standards.
