Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL, Reach, RoHs, ISO19001, ISO14001

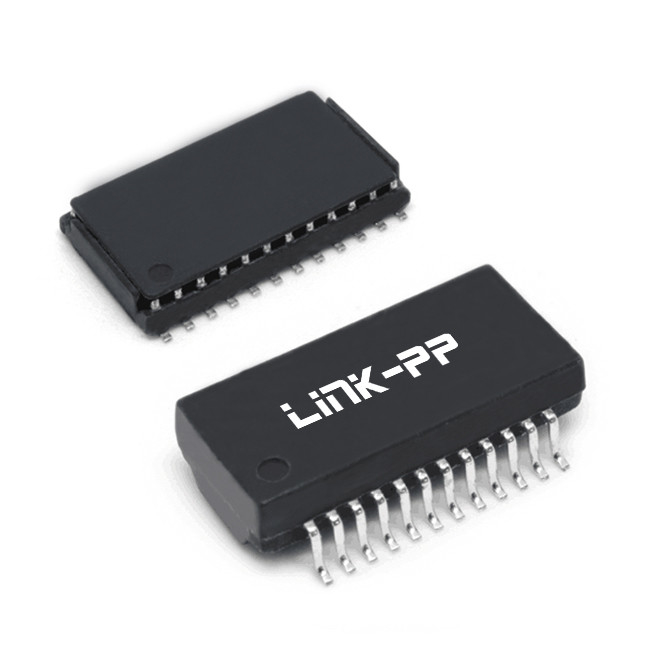

Model Number: HB5005HLT, HXB5007HLT, HB5010HLT
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.08-$2.02
Packaging Details: Tape and Reel
Delivery Time: 2-3 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Products Type: |
PoE Transformer Modules |
Number Of Ports: |
SINGLE |
Data Rate: |
1000BASE-T |
Application: |
ETHERNET TRANSFORMER/CHOKE |
Turns Ratio: |
1CT:1CT |
Isolation Voltage (V): |
1500VAC |
Products Type: |
PoE Transformer Modules |
Number Of Ports: |
SINGLE |
Data Rate: |
1000BASE-T |
Application: |
ETHERNET TRANSFORMER/CHOKE |
Turns Ratio: |
1CT:1CT |
Isolation Voltage (V): |
1500VAC |
| Items/Part Number | HB5005HLT | HXB5007HLT | HB5010HLT |
|---|---|---|---|
| Turns Ratio | 1CT:1CT | 1CT:1CT | 1CT:1CT |
| Media side inductance (@100KHz, 0.1V) | 350uH MIN | 350uH MIN | 350uH MIN |
| Insertion Loss (1-100MHz) | -1.0dB MAX | -1.0dB MAX | -1.0dB MAX |
| Return Loss (1-40MHz) | -16dB MIN | -16dB MIN | -16dB MIN |
| Return Loss (40<f≤100MHz, dB MIN) | -(10-20 log10(f/80)) | -(10-20 log10(f/80)) | -(10-20 log10(f/80)) |
| PoE (Current Per Pair) | 350mA | 350mA | 350mA |
| Operating Temperature | 0-70°C | -40°C - +85°C | 0-70°C |
| Isolation (Pri: Sec) | 1500Vrms | 1500Vrms | 1500Vrms |
| Note | 30W PoE 4 Pair | 30W PoE 4 Pair | 30W PoE, Surge 2.5KV |
