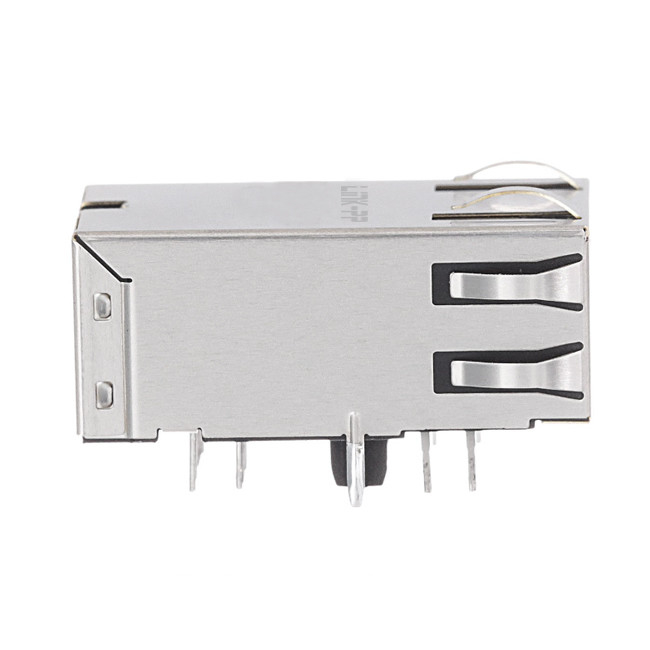

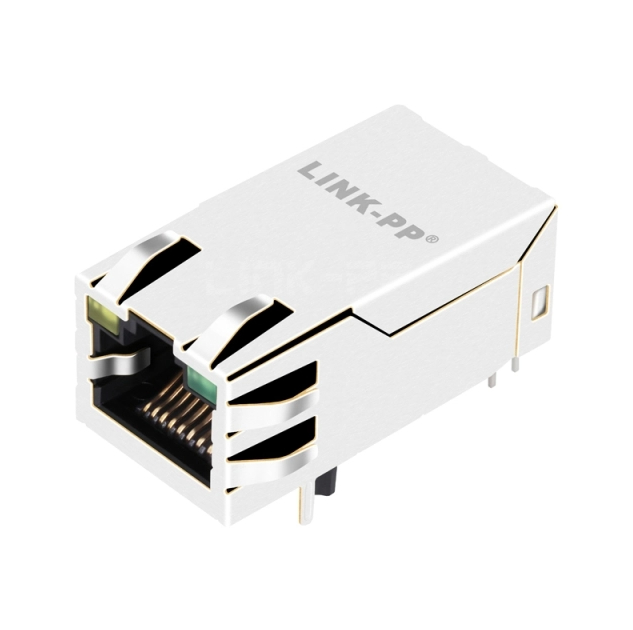

JXT4-1198HL 1x1 Low Profile 10G RJ45 Connector for PCL Express

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: FCC, RoHS

Model Number: JXT4-1198HL

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: $1.1-$3.8

Packaging Details: Reel

Delivery Time: Ships within 15 days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 6000000-Pcs/Month

Get Best Price
Highlight:

JXT4-1198HL

,

10G Pulse RJ45

,

JXT4-1198HL Low Profile RJ45

Part Number:
JXT4-1198HL Low Profile RJ45 Connector
Number Of Ports:
1X1
Data Rate:
10000BASE-T
LATCH:
LATCH-DOWN
Contact Material:
Phosphor Bronze
Housing Material:
Thermoplastic
Shield Material:
Brass
RoHS CompliConnectorant:
YES
Part Number:
JXT4-1198HL Low Profile RJ45 Connector
Number Of Ports:
1X1
Data Rate:
10000BASE-T
LATCH:
LATCH-DOWN
Contact Material:
Phosphor Bronze
Housing Material:
Thermoplastic
Shield Material:
Brass
RoHS CompliConnectorant:
YES
JXT4-1198HL 1x1 Low Profile 10G RJ45 Connector for PCL Express

Product Description:



The JXT4-1128HL 10G RJ45 connector with integrated magnetics, provides a highly integrated compact, and reliable connectivity solution - from cable to physical layer. Integrating the magnetics into the jack greatly improves EMl noise shielding, resulting in a more reliable connection.



Key Features & Benefits:



• 1X1 low profile compact design <12mm off PCB.
• 10GBASE-T high-speed stable data transmission,10G Ethernet over UTP surpassing IEEE802.3an
• Green, Yellow / Green Bi-colour LEDs for indicating operating mode.
• The THT mounting allows for easy and secure mounting to the circuit board.
• Supports 5th Channel, Common Mode noise reduction pair.
• Full RoHS and Halogen Free compliance for industrial and outdoor use.
• High-quality materials ensure strong corrosion resistance.
• 50u” GOLD plating area for secure connections.
• Extended industrial operating temperature range from -40°C - +85°C.
• High durability with 750 Insertions testing.
• Adopt the latest reflow soldering production process.
• Equipped with a brass shield to provide excellent electromagnetic interference (EMI) protection.
• Matched to leading PHY vendor's ICs.
• Suitable for various network devices, including routers, switches, servers, etc. Also ideal for modern applications such as video streaming, online gaming, and large file transfers.

Low Profile RJ45 Jack Parameters:



Product Name Low Profile RJ45 Jack
Part Number JXT4-1128HL
Mounting THT Through-hole
Length 28.57mm
Width 17.53mm
Height 11.92mm
Operating Temperature Range -40°C to +85°C
Moisture Sensitive Level 1

Shield Material Specification

1. Brass Material

2. 50-200µ inches thick nickel over brass Finish

Contact Material Specification

3. Phosphor Bronze Material

4. 50µ inches gold over 30-50µ inches nickel Plating Area

5. 200-500µ inches tin over 50-100µ inches nickel Solder Area

Housing Material Specification 6. Thermoplastic Material
7. UL 94 V-0 Specification


Details:

JXT4-1198HL 1x1 Low Profile 10G RJ45 Connector for PCL Express 0
