Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HR961160C
Payment & Shipping Terms
Minimum Order Quantity: 770
Price: Supportive
Packaging Details: 110PCS/ Reel,7Reels=770PCS=10KG=35.5*35.5*35cm/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
HR961160C |
Update PN: |
LPJ3011ABNL |
Family: |
Surface Rj45 |
Apllication: |
10/100Base-T |
Original Munafactuer: |
LINK-PP |
Samples: |
Free Available |
Specification: |
HR961160C |
Update PN: |
LPJ3011ABNL |
Family: |
Surface Rj45 |
Apllication: |
10/100Base-T |
Original Munafactuer: |
LINK-PP |
Samples: |
Free Available |
|
Part Number
|
Made In China
|
Manufacturer
|
Description
|
|

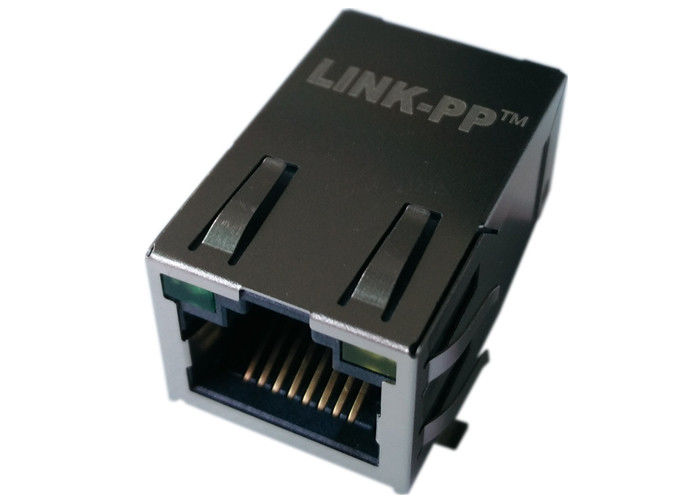

HR961160C
|
SM-LPJ3011ABNL
|
LINK-PP
|
1xrj45,10/100Mbps Magnetics,W/LED POE 802.3af
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Rj45
|
10/100Mbps
|
SMT
|
|
|
|||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
90° Angle (Right)
|
Solder
|
G&Y
|
Shielded ,EMI-Finger
|
|
HR961160C Electrical Specifications @25℃
1.Turns Ratio(± 2%): TX=1CT:1CT RX=1CT:1CT 2.OCL: 350uH Min @100KHz,100mV,8mA bias current 3.Insertion Loss: 1-65MHz:-1.0dB Max 4.Return Loss(dB Min @100Ω± 15Ω): 1-10MHz:-20 30MHz:-16 60-80MHz:-12 5.Crosstalk(dB Min): 1-10MHz:-40 30-60MHz:-35 60-100MHz:-30 6.Common Mode Rejection(dB Min): 1-50MHz:-30 50-130MHz:-20 7.Isolation Voltage: 1500Vrms Min 8.Operating Temperature: -40℃～+85℃ |
|||
|
