Product Details
Place of Origin: HuiZhou, China
Brand Name: LINK-PP
Certification: RoHS, Halogen Free
Model Number: HB4013HLT
Payment & Shipping Terms
Minimum Order Quantity: 1pc, 10 pcs, 25 pcs, 50 pcs, 100 pcs
Price: $1.0-$2.8
Packaging Details: Tape & Reel (TR)
Delivery Time: Ships within 10 days, 100% inspection before shipment
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000000-Pcs/Month
Part Number: |
HB4013HLT Pulse Transformer |
Number Of Channels/Ports: |
1 |
Data Rate: |
2.5G BASE-T |
Header Material: |
Thermoplastic Plastic |
Lead Frame Material: |
Copper Alloy |
Finish Material: |
Matte Finish Tin Solder |
RoHS CompliConnectorant: |
YES |
Halogen Free: |
YES |
Part Number: |
HB4013HLT Pulse Transformer |
Number Of Channels/Ports: |
1 |
Data Rate: |
2.5G BASE-T |
Header Material: |
Thermoplastic Plastic |
Lead Frame Material: |
Copper Alloy |
Finish Material: |
Matte Finish Tin Solder |
RoHS CompliConnectorant: |
YES |
Halogen Free: |
YES |

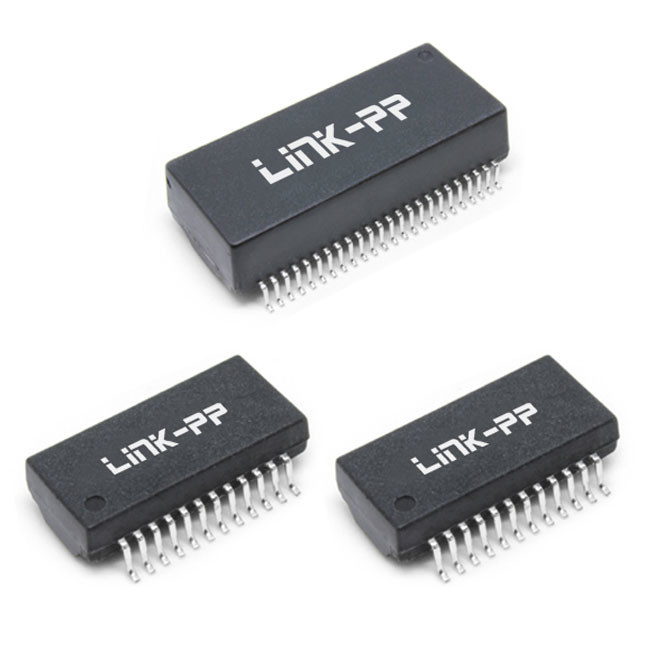

The HB4013HLT is a high-performance single-port SMD magnetic module, designed for modern networking applications. Fully compliant with RoHS and Halogen Free standards, this transformer is ideal for commercial and industrial 2.5G switches, providing reliable and efficient power delivery over Ethernet connections.
1. Robust Design: Built for reliability and durability, the HB4013HLT is engineered to withstand commercial and industrial environments.
2. 60W PoE+ Support: this magnetic transformer enables efficient power delivery for PoE-enabled devices, ensuring seamless operation.
3. IEEE802.3bz/at/bt Compliance: Meets or exceeds IEEE802.3bz/at/bt standards, ensuring compatibility with a wide range of networking equipment and protocols.
4. Backward Compatibility: Backward compatible with Gigabit PHYs, providing flexibility for integration into existing network infrastructures.
5. High-Temperature Reliability: Reliable SMD packages support peak reflow temperatures of up to 245°C, ensuring stable performance even in challenging thermal conditions.
6. Isolation Voltage: Equipped with 1500VAC high isolation voltage, ensuring safe and reliable operation in various networking environments.
| Transformer Type | LAN 2.5G Base-T, PoE |
| Inductance | 180µH |
| Turns Ratio | 1CT:1CT |
| Length (mm) | 17.6 |
| Width (mm) | 15.9 |
| Height (mm) | 6 |
| Operating Temperature | 0°C ~ 70°C |
| Application | Ethernet Transformer/Choke |
| Data Rate | 2.5GBASE-T |
| Number of Channels/Ports | Single |
| PoE | 60W PoE+ (4pr) |
| Isolation Voltage (V) | 1500VAC |
1. Storage Temperature:
HBxxxxHL = -20°C to +125°C
HXBxxxxHL = -50°C to +125°C
2. Moisture Sensitive Level = 1
Maximum Peak Solder Temperature = 245°C
3. All parts come in 13” (330mm) Diameter Tape and reel
4. Materials:
Header: Black Thermoset Plastic - Material flammability rating UL 94V-0
Lead Frame: Cooper Alloy
Underplate / Overplate: Tin electro-deposited over Nickel
Finish: Matte finish Tin solder
Tape & Reel
1. Material: Black Antl-Stalic polystyrene.
2. 10 sprocket hole pith cumulative tolerance ±0.20mm
3. A11 dimensions meet EIA-481-E requirement.
4. Thickness:0.3±0.05mm
5. Component load per 13' reel: 1200pcs.
Carton Package
1 REEL = 350PCS
1 INNER BOX = 1 REEL = 350PCS
1 OUTER BOX = 5 INNER BOXES = 1750PCS
