Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HXB4019HLT
Payment & Shipping Terms
Minimum Order Quantity: 1pcs, free sample is available
Price: $0.09-$2.2
Packaging Details: T&R
Delivery Time: within 1-2 weeks
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Product Series: |
HXB4019HLT Pulse Transformer |
Mounting: |
SMT |
Number Of Channels/Ports: |
DUAL |
PoE: |
PoE+ (4pr) |
Operating Temperature: |
-40℃ To +85℃ |
Transformer Length: |
32.8 Mm |
Transformer Width: |
17.6 Mm |
Transformer Height: |
7.3 Mm |
Product Series: |
HXB4019HLT Pulse Transformer |
Mounting: |
SMT |
Number Of Channels/Ports: |
DUAL |
PoE: |
PoE+ (4pr) |
Operating Temperature: |
-40℃ To +85℃ |
Transformer Length: |
32.8 Mm |
Transformer Width: |
17.6 Mm |
Transformer Height: |
7.3 Mm |

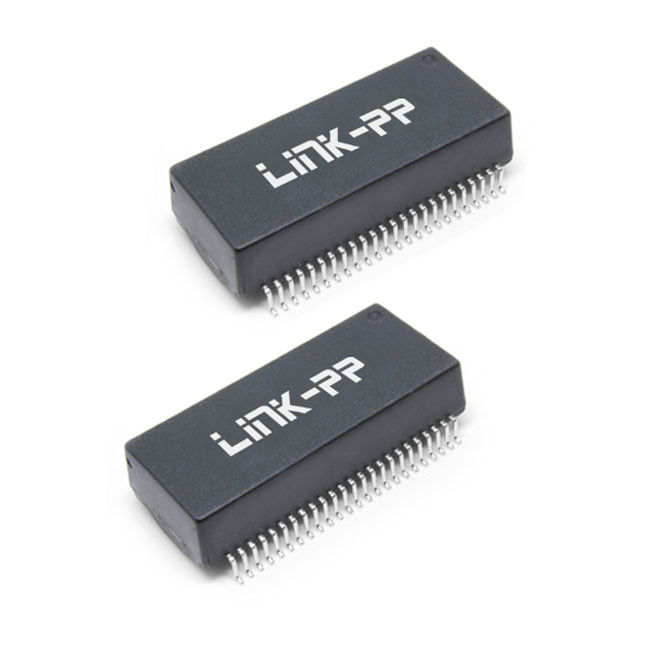

The HXB4019HLT is a high-performance Ethernet transformer designed to meet the demands of modern networking applications. With dual ports and support for 2.5GBASE-T data rates, this transformer is ideal for high-speed Ethernet connectivity. Featuring 90W PoE+ support, it is capable of delivering power over Ethernet to compatible devices. The compact SMD design and robust construction make it suitable for a wide range of Ethernet applications.
| Part Number | HXB4019HLT | Turns Ratio | 1CT:1CT |
| Transformer Grade | Commercial grade | Isolation Voltage (V) | 1500VAC |
| Mounting Type | Surface Mount | Media side inductance | 180uH MIN @100KHz, 0.1V |
| Mounting Style | 48 Pin SMD | Insertion Loss | -1.0dB MAX @ 1-100MHz -1.5dB MAX @ 125MHz |
| Data Rate | 2.5GBASE-T | Return Loss |
-16dB MIN @ 1-40MHz -(16-10 log10(f/40))dB MIN @ 40<f≤100MHz |
| Number of Channels/Ports | Dual Port | PoE | 1000mA Current Per Pair |
| RoHS Status | Fully ROHS Compliant | Isolation | 1500Vrms Pri: Sec |
| Halogen Free | YES | Note | Dual / 90W PoE+ |
| Moisture Sensitive Level | 1 | Operating Temperature | -40 to +85°C |
| Maximum Peak Solder Temperature | 245°C | Storage Temperature | -50 to +125°C |
