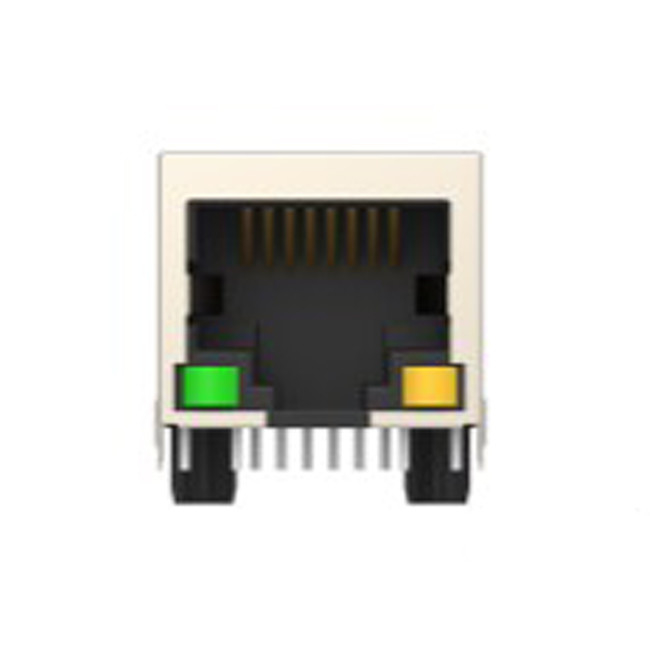

6-2337992-8 Ethernet Jacks with Integrated Magnetics and POE

Features of 6-2337992-8 Ethernet Jacks:

• Product Type: RJ45 with Integrated Magnetics
• Supporting 260°C reflow solder processes to simplify manufacturing without extra process step
• Reduction of electrical problems and corrosion via thicker plating
• Fits Industrial applications: -40°C to +85°C temp range
• Compact design on PCB using integrated magnetics
• Remote powering supported by 802.3at PoE
• Enhanced EMI with 3-wire choke
• Plating thickness 0.76µm [30µ inch] Gold over 1.27µm [50µ inch] Nickel

6-2337992-8 Parameters:

Product Type:
• Modular Jack & Plug Interface Type : RJ45 with Integrated Magnetics
• Modular Jacks & Plugs Products: RJ Type Jacks & Plugs
• Modular Connector Style: Jack
• Grounding Options: PCB Ground
• Connector & Contact Terminates To: Printed Circuit Board

ELECTRICAL
• 10/100 Mbps Ethernet, 1 Gbps
• Dielectric withstanding 2250V DC
• Supports voltage or current mode
applications
• 3-wire choke

MATERIALS
• Plating thickness 0.76µm [30µ inch]
Gold over 1.27µm [50µ inch] Nickel
• High-grade LCP
• UL94-V0
• 260°C reflow capable
• Moisture sensitivity level (MSL) 1

Contact Features
• PCB Contact Termination Area Plating Material: Tin
• Contact Underplating Material: Nickel
• PCB Contact Termination Area Plating Material Finish: Matte
• Contact Mating Area Plating Material: Gold
• Contact Base Material: Copper Alloy
• Contact Mating Area Plating Material Thickness: .76 µm [ 30 µin ]

MECHANICAL
• -40°C to +85°C
• Min. 750 mating cycles
• Different configurations available

Applications of RJ45 with Integrated Magnetics:

Industrial Switches and Routers: supporting data communication and control within industrial production environments.

Programmable Logic Controllers (PLCs): 6-2337992-8 RJ45 connectors enable seamless data transmission and control signals between PLCs and other networked devices.

Industrial Sensors and Actuators: ensure reliable communication between sensors, actuators, and central control systems.

Automated Manufacturing Systems: optimizing production processes and minimizing downtime.

Test and Measurement Equipment: facilitate data transmission and remote control functionalities.

Packing and Shipping Details:

Packaging Quantity: 50
Packaging Method: Tray

The connectors are carefully arranged and secured within trays to prevent damage during transportation and handling.

The tray packaging ensures convenient storage and easy access to the connectors when needed for installation or assembly.
All packaging materials are designed to meet industry standards for durability and protection.
Clear labeling and product information is provided on the packaging for quick identification and reference.
