Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 5-2337992-3
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $0.09-$1.83
Packaging Details: 50pcs/tray
Delivery Time: 5-7 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Type: |
RJ45 JACK MAG |
Port Configuration : |
Single Port |
Gender: |
Female Jack |
Port Configuration: |
1x1 |
Number Of Positions / Contacts Per Port: |
8P8C |
Shielding: |
Shielded, EMI Fingers |
Performance Category: |
Cat 5 |
Mounting Style: |
Through Hole-Solder |
Mounting Angle: |
Right Angle |
LED L / R Color: |
Green / Yellow |
Tab Direction: |
Tab Up |
Application: |
10/100 Base-T PoE |
Contact Material: |
Copper Alloy |
Contact Plating: |
Gold |
Flammability Rating: |
UL 94 V-0 |
Mating Cycles: |
750 Cycles |
Type: |
RJ45 JACK MAG |
Port Configuration : |
Single Port |
Gender: |
Female Jack |
Port Configuration: |
1x1 |
Number Of Positions / Contacts Per Port: |
8P8C |
Shielding: |
Shielded, EMI Fingers |
Performance Category: |
Cat 5 |
Mounting Style: |
Through Hole-Solder |
Mounting Angle: |
Right Angle |
LED L / R Color: |
Green / Yellow |
Tab Direction: |
Tab Up |
Application: |
10/100 Base-T PoE |
Contact Material: |
Copper Alloy |
Contact Plating: |
Gold |
Flammability Rating: |
UL 94 V-0 |
Mating Cycles: |
750 Cycles |
1. Connector Material:
Housing: Lcp Black Ul94 V-0
Insert: Lcp Black Ul94 V-0
Shield: Brass
Shield Plating: Nickel
Contact: Copper Alloy
Contact Plating: Selective Gold, Min. 0. 76hm (30 μ Inch) In Contact Area.
Over Min. 1. 27hm (50μInch) Nickel
Solder Pin Plating: 3. 05hm (120μInch) Tin 0ver 1. 27hm (50μI Nch) Nickel Overall
Shielding Pin Plating: Nickel
2. Pin Not Electrically Connected May Be Omitted
3. Rj45 Cavities Conform To T0 Fcc Rules And Regulation Part 68,
4. The Part Is Recommended For The Reflow Soldering Process Peak Soldering: Temperaturemax. +260° C, Max. 10s
5. Operating Temperature: T= -40° C To +85°C
6. Storage Temperature: T= -40° C To +85° C
7. Unless Otherwise Specified,See Table For All Dimensions Tolerances
8. Jack Conf Iguration: 1 X 1
Tab Direction: Up
9. Packaging: Tray
| Product Series |
PoE RJ45 Magjack |
|---|---|
| Turn Ratio | (P1~ P2):(J1~J2) = 1:1土2% @1 00kHz (P3~ P6):(J3~J6) = 1:1士2% @1 00kHz |
| Primary Inductance | 350μH MIN. @100kHz,0.1V 8mA DC BIAS |
| DC Resistance | 1.2 0HMS MAX. |
| Insertion Loss | 1 -100MHz:-1.2dB MAX. |
| Return Loss | 1- 30MHz:-16dB MIN. 30- 60MHz:-12dB MIN. 60- 80MHz:- 10dB MIN. |
| CROSS TALK | 1 -100MHz:- 27.1dB MIN. |
| COMMON TO COMMON MODE ATTENUATION | 1-100MHz:- 30dB MIN. |
| Isolation | PHY Side to Line Side: 500VAC |
| DC CURRENT/VOLTAGE RATING-PSE PINS | 720mA @57V(CONTINUOUS) |
• Industrial Communications & Ethernet
• Industrial Machinery
• Industrial Production Equipment
• Automated Test Equipment

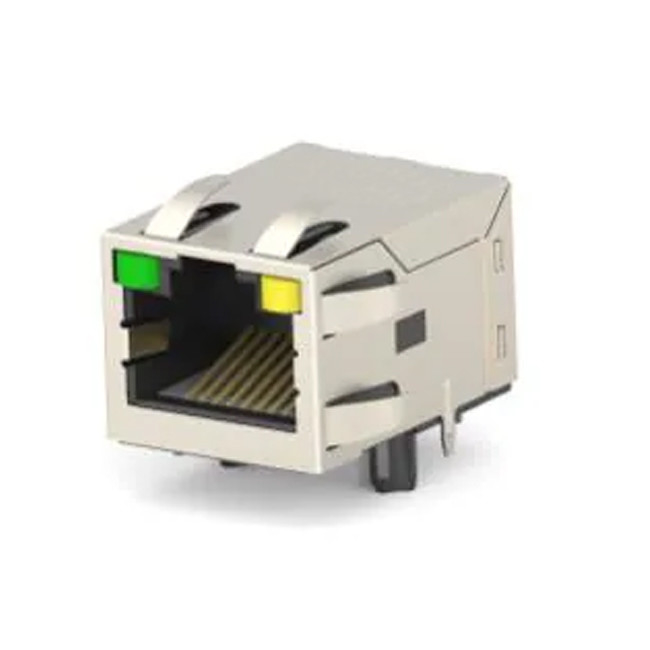

Shielded RJ45 Jack with integrated Magnetics feature brass shells, providing continuity for EMC (Electromagnetic Compatibility) applications. When mated with corresponding shielded RJ45 plugs, shielding and grounding continuity are achieved. When the shield solder tines are soldered to the PC board they provide electrical continuity to any ground path on the PC board and, where applicable, panel ground tabs on the shield provide electrical continuity to any ground path through the equipment panel.
