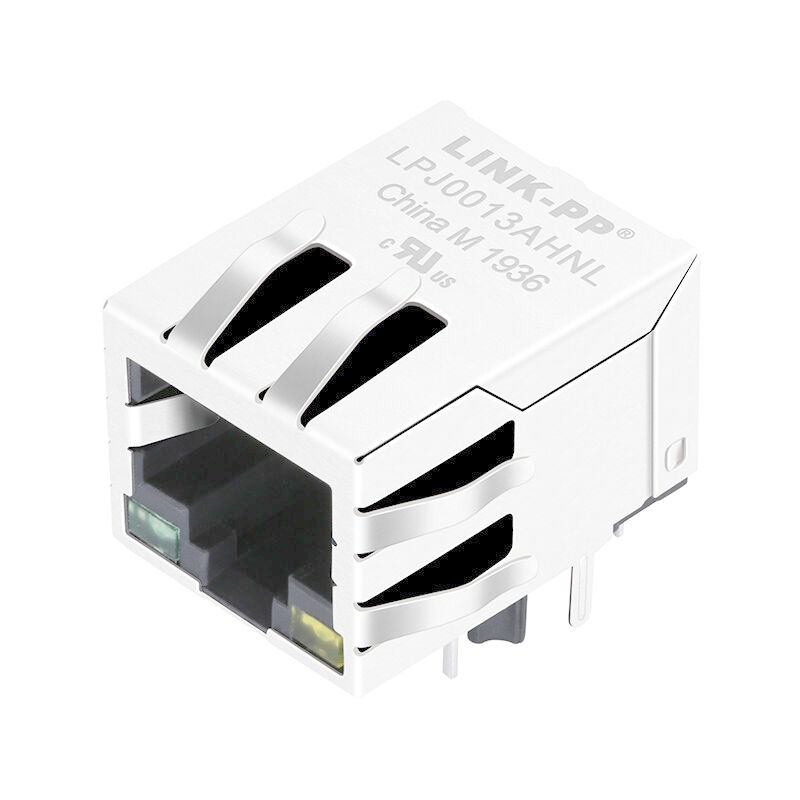

MagJack RD1-125BAG1A Rj45 with Integrated 10/100Base-T Magnetics LPJ0013AHNL

Name: MagJack RD1-125BAG1A Rj45 with Integrated 10/100Base-T Magnetics LPJ0013AHNL
Brand: LINK-PP
SKU: RD1-125BAG1A
Rating: 4.7 (185 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RD1-125BAG1A
