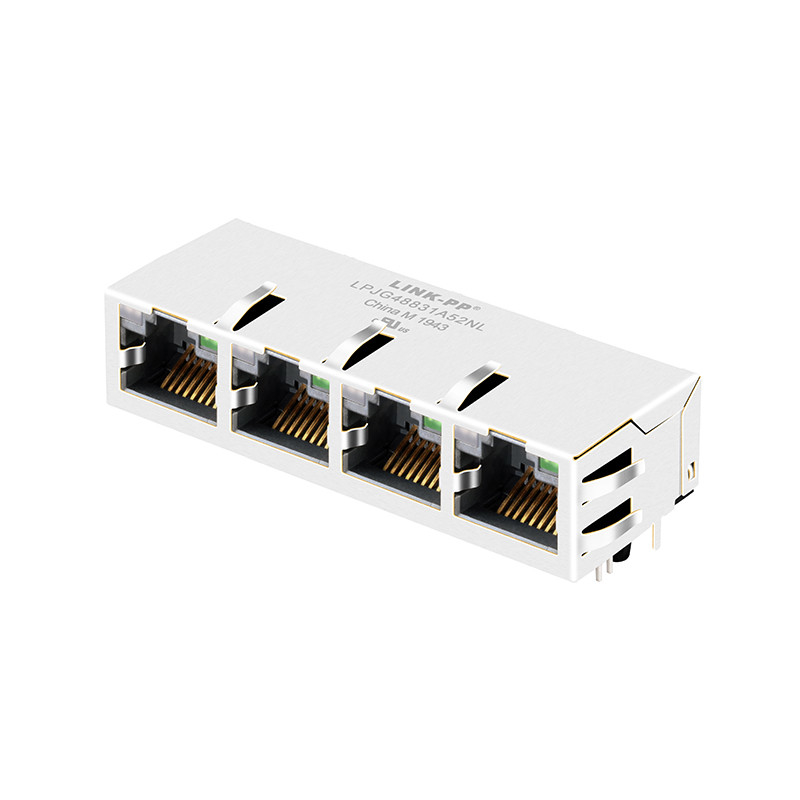

LPJG48831A52NL Quad Port RJ45 Connector With Integrated Magnetic

Product Details

Place of Origin: CHINA

Brand Name: Link-pp

Certification: ROHS

Model Number: LPJG48831A52NL

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: $0.32 - $1.2

Packaging Details: Carton

Delivery Time: 2 Weeks

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 10000 Pieces per Week

Get Best Price
Highlight:

1000Base-T 4 Port RJ45 Connector

,

1X4 RJ45 With Magnetic

,

1X4 Integrated RJ45 Connector

Products Type:
4 Port RJ45 Connector
Tab Direction:
Up
EMI Finger:
With
LED Option:
With
Magnetic:
Integrated
Length:
25.40mm
Width:
59.20mm
Height:
13.50mm
Products Type:
4 Port RJ45 Connector
Tab Direction:
Up
EMI Finger:
With
LED Option:
With
Magnetic:
Integrated
Length:
25.40mm
Width:
59.20mm
Height:
13.50mm
LPJG48831A52NL Quad Port RJ45 Connector With Integrated Magnetic

LINK-PP RJ45 ICMs Description:



Featuring a popular footprint and compatible package to industry RJ45 Integrated Connectors standards, the LINK-LPJG48831A52NL is an RJ45 Integrated Connector 1G Base-T with a 1x4 Port configuration and Shielded EMI Finger long body with RoHS compliant. These through-hole components provide reliable performance and maintain signal integrity that Meets IEEE 802.3 specifications. The LPJG48831A52NL RJ45 Integrated Connectors are designed for commercial-grade applications.



Typical Applications Include:

- Industrial Automation Control Systems

- Hubs

- Routers

- Switches

- Wireless Access Points

- Firewalls

- Computers and Servers

- VoIP Gateways

- IoT Devices

- Medical Devices

Technical Specification of 1G Base-T 4 Port RJ45 Connector:

Products Category RJ45 Magnetic Jack
LINK-PP Part Number LPJG48831A52NL
Ports Configuration 1x4
Tab Direction Up
Speed 1000 Base-T
LED Color Left Yellow, Right Green
EMI Finger With
Shielding Shielded
Performance Category Cat 5
Mounting Style Through Hole
Mounting Angle Right Angle
PoE rating None PoE
Operating Temperature Range 8 mA
Minimum Operating Temperature 0°C-70°C
Turns Ratio -Primary Secondary 1CT:1CT
Inductance 350µH
Isolation PHY SIDE To Line SIDE 1500Vrms
Contact plating Gold 6 micro-inches min.In contact area.

LPJG48831A52NL RJ45 Connector Datasheet:




Details:


LPJG48831A52NL Quad Port RJ45 Connector With Integrated Magnetic 0
