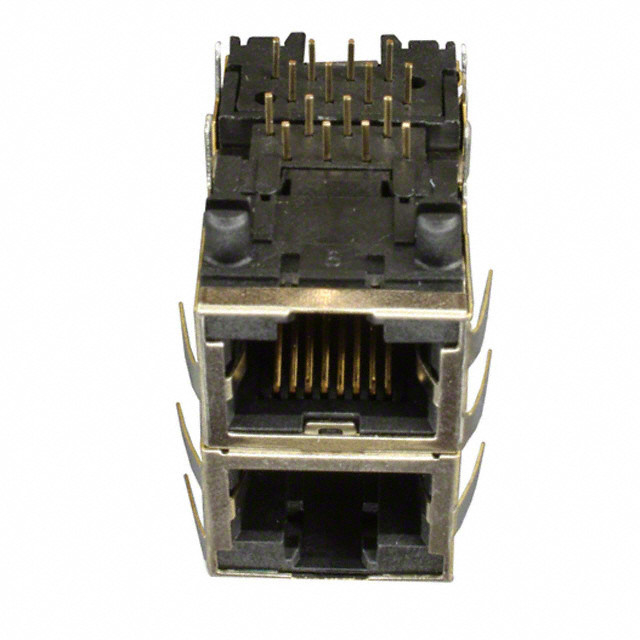

RJSAE538002 Stacked 2X1 RJ45 Modular Jack 8P8C LPJE218-0CNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: RoHS, REACH, UL

Model Number: RJSAE538002(LPJE218-0CNL)

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: $0.05-$1.20

Packaging Details: Available in tray and tape and reel packaging

Delivery Time: About 2 weeks

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 6500K-PCS/Month

Get Best Price
Highlight:

RJSAE538002

,

8P8C Stacked RJ45 Connector

,

RJSAE538002 2X1 RJ45 Connector

Ports:
2x1
Latch Orientation:
Up And Down
Profile:
Standard
LED Option:
No
Shield:
Yes
Positions And Contacts:
8P8C
Ports:
2x1
Latch Orientation:
Up And Down
Profile:
Standard
LED Option:
No
Shield:
Yes
Positions And Contacts:
8P8C
RJSAE538002 Stacked 2X1 RJ45 Modular Jack 8P8C LPJE218-0CNL

Specifications of RJSAE538002 RJ45 Modular Jack



MATERIAL:

1. HOUSING MATERIAL: GLASS FILLED POLYESTER(PBT UL94V-0).

2. CONTACT MATERIAL: PHOSPHOR BRONZE Ø0.46mm.

3. PLATING: GOLD PLATING OVER NICKEL.

4. SHIELD: COPPER ALLOY 0.20mm THICKNESS PLATING NI.



ELECTRICAL CHARACTERISTICS:

1. VOLTAGE RATING: 125 VAC RMS.

2. CURRENT RATING: 1.5 AMP.

3. Contact Resistance: 20mΩ max.

4. Insulation Resistance: 500MΩ min. at 500V DC for 2 minutes max.

5. DIELECTRIC WITHSTANDING

RESISTANCE: 1000V AC RMS 50Hz. 1MIN.

6. DWV: 1000V AC, 60Hz., 1 minute



MECHANICAL PERFORMANCE:

1. DURRABILITY: 750 CYCLES MIN.

2. PCB RETENTION PRE-SOLDER LB MIN.

3. Insertion Force: 5 lbs max.
4. Pull Retention Force: 20 lbs min.



ENVIRONMENTAL:

1. Storage Temperature Range: -40°C TO +85°C.

2. Operation Temperature Range: -40°C TO +85°C.

3. Wave solder tip temperature and time: 250℃,5 Sec.

4. UL Certification: File Number E484635.
