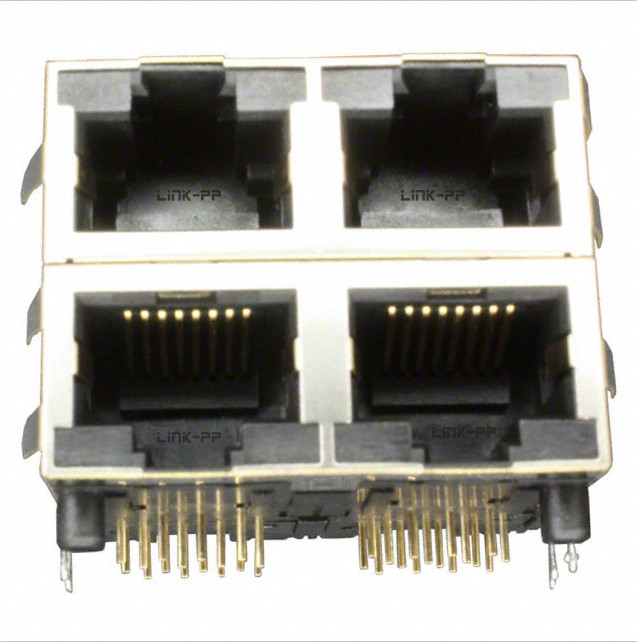

RJSAE538004 Stacked RJ45 2X2 Port Connector ROHS Compliant

Overview:

LINK-PP LPJE227-0CNLF 2x2 port RJ45 connector, offering 8p8c per port. This modular jack is shielded with top and side EMI tabs, ensuring enhanced electromagnetic interference performance. Compatible with RJSAE538004 stackable modular jacks, it supports Ethernet protocols. The connector is RoHS compliant, making it suitable for environmentally-conscious designs and applications requiring robust network connectivity.

MATERIAL REQUIREMENTS

Unless otherwise specified, the material for each component shall be:

1. Insulator: Engineering thermoplastic, flammability rating UL 94V-0
2. Contacts: Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ” 30µ”, 50µ”) over 50µ” minimum Nickel on contact mating area, 100µ” minimum matte Tin plating on soldering tail
3. Shield: Copper alloy with Tin finish tails
4. LED: Pure Tin plating on LED tail

Specifications of  RJSAE538004 RJ45 2x2:

RJSAE538004 (LPJE227-0CNLF) RJ45 Connector Datasheet:

LPJE227-0CNLF.pdf

Application of  Stacked 4 Port RJ45 Connector:

LINK-PP RJ45 Connectors are used in various end-user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace.

• Audio / Video product: MP3, MP4, DVD, stereo system
• Digital devices: digital camera, digital video
• Remote control: Vehicle, rolling door, Home security products
• Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
• Household Appliances: TV, microwave oven, electric cooker, electric hair dryer, electronic scale, Body Fat &Water Scale, Kitchen Scale.
• Security Products: Videophone, Monitor, etc.
• Toy: electronic toy etc.
• Computer products: Camera, recording pen etc.
• Fitness equipment: running machine, massage chair, timer, etc.
• Medical Equipment: sphygmomanometer, thermometer, the hospital call system, and other similar products.
