Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Features:	Board Guide	Specifications:	SI-50196-F
P.N:	LPJ1014NWNL	Termination:	Solder
Apllication:	10/100 Base-T, AutoMDIX	Samples:	Available

Features:	Board Guide
Specifications:	SI-50196-F
P.N:	LPJ1014NWNL
Termination:	Solder
Apllication:	10/100 Base-T, AutoMDIX
Samples:	Available

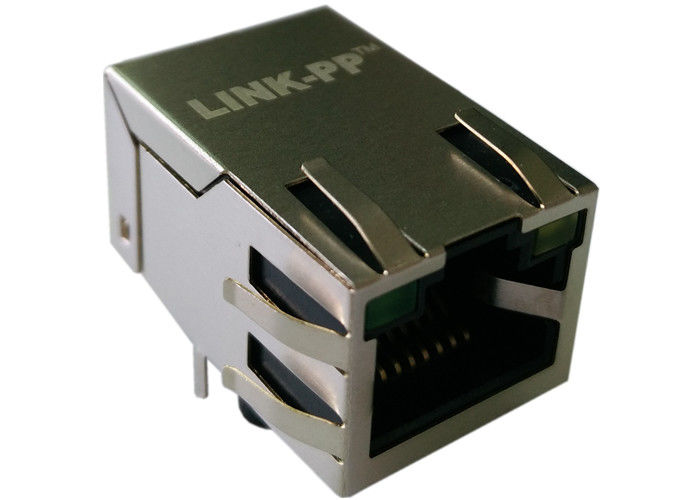

SI-50196-F Magnetic RJ45 Jack LPJ1014NWNL Tab-Up 10/100M With LEDs

SI-50196-F Magnetic RJ45 Jack LPJ1014NWNL Tab-Up 10/100M With LEDs

Specifications

P.N

Manufacturer

Description

SI-50196-F

LPJ1014NWNL

LINK-PP

1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX

Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

LINK-PP Female Rj45

10/100

Thru-Hole(SMT for Single

Port)

Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

With Or Without

(Un)Shielded

Connector Type	RJ45
Features	AutoMDIX, Board Guide
Height Above Board	0.523" (13.28mm)
LED Color	Green - Green
Mounting Type	Through Hole, Right Angle
Number of Cores per Jack	4
Number of Ports	1
Number of Rows	1
Packaging	Tray
Shielding	Unshielded
Speed	10/100 Base-TX
Tab Direction	Up
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant

SI-60085-F	ARJ11G-MBSC-MU2	857913020	85793-1007
SI-60088-F	ARJ11G-MBSD-LU2	857914020	85793-1007
SI-60089-F	ARJ11G-MBSE-MU2	857931001	85793-1007
SI-60090-F	ARJ12A-MASD-A-B-EMU2	857931001	85793-1010
SI-60091-F	ARJ12A-MASD-A-B-FMU2	857931003	85793-1012
SI-60092-F	ARJ12A-MCSD-MU2	857931006	85793-1013
SI-60093-F	ARJ14A-MSA-MU2	857931007	85793-1014
SI-60095-F	ARJ14A-MSB-MU2	857931007	85793-1020
SI-60096-F	ARJ14A-MSC-MU2	857931007	85793-1020
SI-60097-F	ARJ14A-MSD-A-B-ΔMU2	857931010	85793-1020
SI-60098-F	ARJ14A-MSD-MU2	857931012	85793-3006
SI-60101-F	ARJ14A-MBSD-A-B-EMU2	857931013	85793-3007
SI-60102-F	ARJ21A-MCSA-LU2	857931014	95540-2881
SI-60103-F	ARJ21A-MCSB-MU2	857931020	95540-7886
SI-60104-F	ARJ21A-MCSC-MU2	857931020	95622-3882
SI-60105-F	ARJ21A-MCSD-MU2	857931020	95622-3981
SI-60106-F	ARJ21A-MBSD-A-B-EMU2	857933006	438146621
SI-60107-F	ARJ-101D	857933007	432024101
