Home > products > RJ45 Modular Jack > TE 133184-E Shielded Single Port RJ45 Jack Vertical Mounting

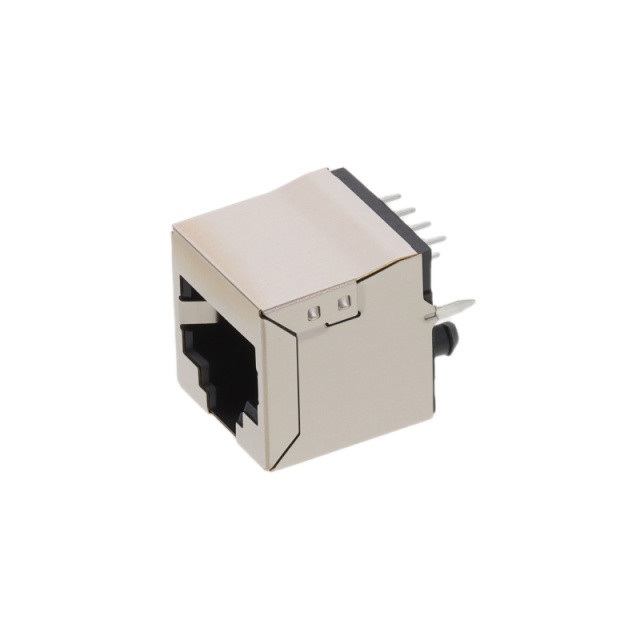

TE 133184-E Shielded Single Port RJ45 Jack Vertical Mounting

Product Details

Place of Origin: Guangdong, China

Brand Name: LINK-PP

Certification: SGS, UL, CE, ISO9001:2008

Model Number: 133184-E (LPJE618-0DNL)

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: $2.5-$8.5

Packaging Details: Tray

Delivery Time: Ships within 15 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 6000K-PCS/Month

Get Best Price
Highlight:

133184-E

,

133184-E RJ45 Jack

LINK-PP Part Number:
LPJE618-0DNL
TE Part Number:
133184-E
Number Of Positions:
8P
Number Of Loaded Positions:
8C
Voltage Rating:
125 VAC RMS
Current Rating:
1.5 AMP
Contact Resistance:
50 MΩ Max
Insulation Resistance:
500 M Min @500V DC
Dielectric Strength:
1500 VAC RMS 60Hz,1MIN.
Operating Life:
750 Cycles Min.
LINK-PP Part Number:
LPJE618-0DNL
TE Part Number:
133184-E
Number Of Positions:
8P
Number Of Loaded Positions:
8C
Voltage Rating:
125 VAC RMS
Current Rating:
1.5 AMP
Contact Resistance:
50 MΩ Max
Insulation Resistance:
500 M Min @500V DC
Dielectric Strength:
1500 VAC RMS 60Hz,1MIN.
Operating Life:
750 Cycles Min.
TE 133184-E Shielded Single Port RJ45 Jack Vertical Mounting

Features of 133184-E RJ45 Connector:



Items 1X1 RJ45 8P8C Modular jack Through Hole without LEDs
Port Configuration Single Port
Part Number 133184-E
Modular Jack & Plug Interface Type RJ45

Connector Contact Density

Standard
PCB Mount Orientation Vertical
Connector Profile Standard
Connector Height 16.59mm
Number Of Positions/Contacts 8P8C
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length 3.2mm
Pitch 2.54mm
PCB Mount Retention Type Location Peg
Shielding Shielded
LED Indicator Without
Operation Temperature 0°C to +70°C
Circuit Application Signal
Performance Category Cat 5
Grounding Options None
Packaging Method Tray
