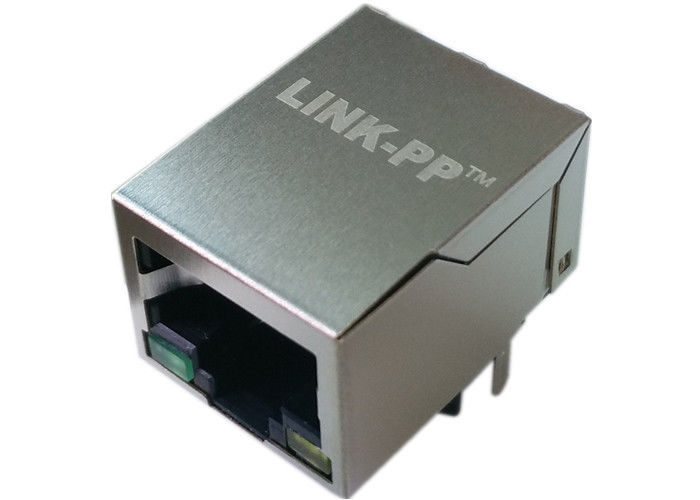

Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJG0820HENL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
LPJG0820HENL |
Part No: |
LPJG0820HENL |
Ethernet: |
1x10/100/1000Mbps |
Mounting: |
R/A Shield 90 Degree |
Indicator: |
LED Flexible |
Samples: |
Available |
Specification: |
LPJG0820HENL |
Part No: |
LPJG0820HENL |
Ethernet: |
1x10/100/1000Mbps |
Mounting: |
R/A Shield 90 Degree |
Indicator: |
LED Flexible |
Samples: |
Available |
| Electrical Specifications @ 25℃ unless otherwise noted: 1.Inductance: 350uH min, 100KHz, 100mV, 8mADC, J1-J2;J3-J6;J4-J5;J7-J8, LP. 2.Insertion Loss: 1-100MHz:-1.0dB Max 3.Return Loss(dB Min): 1-40MHz:-18 40-60MHz:-14 60-80MHz:-12 80-100MHz:-10 4.Crosstalk: 1-100MHz:-30dB Min 5.Common Made Rejection: 1-100MHz:-35dB Min 6.Turns Ratio: TX=1CT:1CT RX=1CT:1CT 7.Isolation Voltage: 2500VDC 8.Operating Temperature Range: 0℃-70℃. |
|
|
|
