Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS Compliant
Model Number: UE86-3G1620-30361
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $3-$7
Packaging Details: Tray
Delivery Time: Ships within 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000K-PCS/Month
Connector Style: |
Receptacle With Cage |
Connector Type: |
SFP |
Number Of Positions: |
40 (20 X 2) |
EMI Shielded: |
Yes |
Light Pipe: |
With |
Temperature Range: |
-40°C To +85°C |
Connector Style: |
Receptacle With Cage |
Connector Type: |
SFP |
Number Of Positions: |
40 (20 X 2) |
EMI Shielded: |
Yes |
Light Pipe: |
With |
Temperature Range: |
-40°C To +85°C |
|
Product Type |

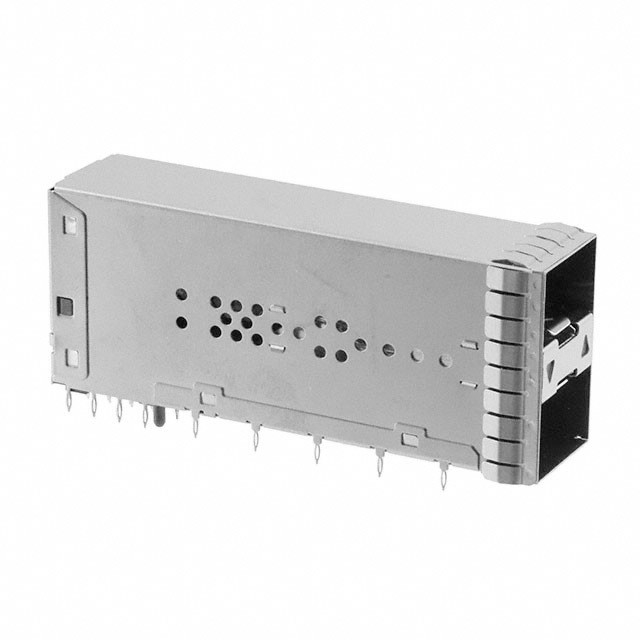

2X1 SFP Cace Connector With Light Pipe Options And EMI Spring Finger |
|---|---|
|
Part Number |
UE86-3G1620-30361 |
|
Port Matrix Configuration |
Ganged (2x1) |
|
Connector Type |
SFP |
|
Number of Positions |
20X2 |
|
EMI Containment Feature Type |
EMI Springs |
|
Included Lightpipe |
Yes |
| Light Pipe Option | 2 Outer LP Per 2x1, Normal Orientation |
| Mounting Type | Through Hole, Right Angle |
|
Termination |
Press-Fit |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
30.0µin (0.76µm) |
|
Plating Options For Connector |
30µ" Gold Plating On Mating Area
150~300µ" Matte Tin On Termination
|
| Packaging | Tray Packaging (Stacked) |
Materials of UE86-3G1620-30316 SFP Cage:
1. Cage - Press Fit: Copper Alloy (Nickel Silver)
2. Connector - Press Fit:
- Plastic Housing: Lcp, Flammability Rating UL94-V0
- Contacts: Phosphor Bronze
3. Light Pipe: Clear Polycarbonate, Flammability Rating UL94-V0
4. Packaging: Tray Packaging
5. Temperature Range: -40°C To +85°C
