Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: UE-LU1D041A1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
LU1D041A1 |
P/N: |
LPJ0012CNL |
Ethernet: |
10 / 100 Base-T |
Indicator: |
LED N/A |
Samples: |
Available |
Specification: |
LU1D041A1 |
P/N: |
LPJ0012CNL |
Ethernet: |
10 / 100 Base-T |
Indicator: |
LED N/A |
Samples: |
Available |
Specifications
|
P/N
|
Manufacturer
|
Description
|

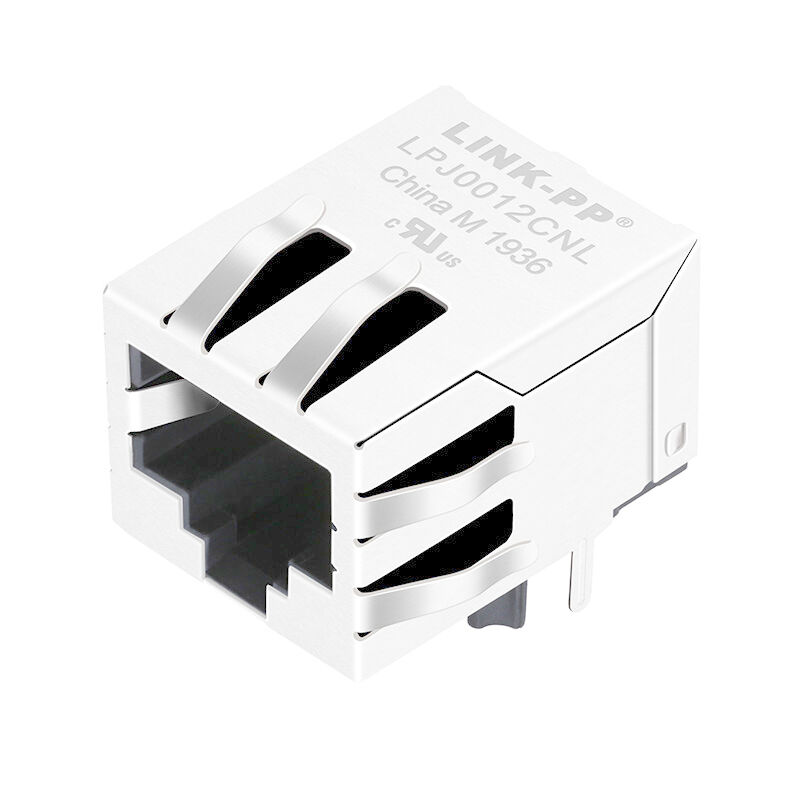

UE-LU1D041A1
|
LPJ0012CNL
|
LINK-PP
|
1x10/100bt Connectors rj45
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
Connectors, Interconnects
|
LINK-PP Female Rj45
|
10/100
|
Thru-Hole
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
90° Angle (Right)
|
Solder
|
None
|
Shielded,EMI-Finger
|
|
Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
Insertion Loss | -1.0dB MAX @ 1-65MHz |
Return Loss | -20dB MIN @ 1-10MHz |
-16dB MIN @ 10-30MHz | |
-12dB MIN @ 30-60MHz | |
-10dB MIN @ 60-100MHz | |
Cross talk | -40dB MIN @ 1-30MHz |
-35dB MIN @ 30-60MHz | |
-30dB MIN @ 60-100MHz | |
Common Mode Rejection | -30dB MIN @ 1-50MHz |
-20dB MIN @ 50-150MHz | |
Hipot Test | 1500Vrms MIN |
Operating Temperature Range | 0℃ TO 70℃. |
