Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: ROHS,ISO,REACH,UL Certified
Model Number: 85513-5116
Payment & Shipping Terms
Minimum Order Quantity: Free Samples Available
Price: $0.28-$0.68
Packaging Details: Embossed Tape on Reel
Delivery Time: 3-6 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, T/T
Supply Ability: 6500Kpcs Per Month
Gender: |
Jack (Female) |
Port Configuration: |
1X1 |
Number Of Positions/Contacts: |
4P4C |
Shielding: |
Unshielded |
Performance Category: |
Cat 3 |
Mounting Type: |
Surface Mount |
Mounting Angle: |
Vertical |
Profile: |
Low Profile |
Gender: |
Jack (Female) |
Port Configuration: |
1X1 |
Number Of Positions/Contacts: |
4P4C |
Shielding: |
Unshielded |
Performance Category: |
Cat 3 |
Mounting Type: |
Surface Mount |
Mounting Angle: |
Vertical |
Profile: |
Low Profile |

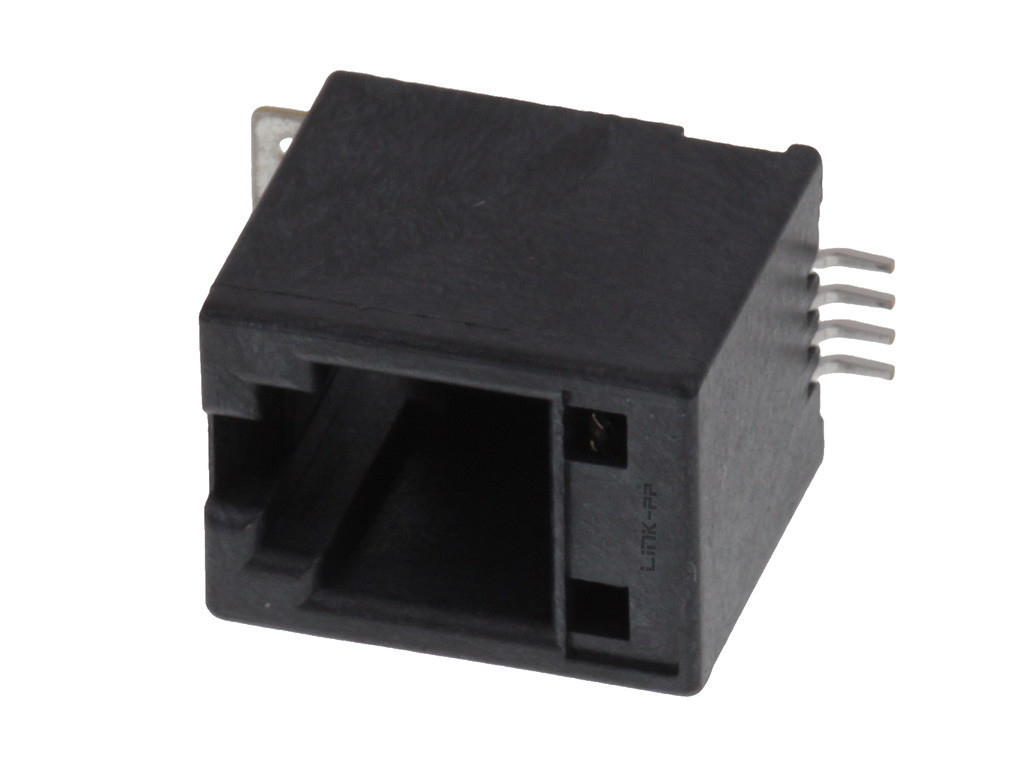

The 85513-5116 4P4C Modular Jack is designed for telecommunications applications, featuring a vertical, top-entry, surface-mount design, it is suitable for diverse communication needs. The vertical mounting angle and PCB mount facilitate easy installation, while the SMT termination simplifies assembly. It has a 1.5A current rating, and 125VDC voltage rating, and operates within a temperature range of -40°C to +85°C, ensuring reliable performance in various environmental conditions.
| General | |
|---|---|
| Product Name | 4P4C Modular Jack |
| Status | Active |
| Category | Modular Jacks and Plugs |
| Description |
Modular Jack, Vertical, Top Entry, Surface Mount, 4/4, Low Profile, Pick-and-Place Polyimide Tape, 13" Reel |
| Comments | Reflow Capable, Small Panel Cutout |
| Component Type | PCB Jack |
| Magnetic | NO |
| PoE | N/A |
| Performance Category | CAT 3 |
| Electrical Specifications | |
| Shielded | No |
| Current - Maximum per Contact | 1.5A |
| Voltage - Maximum | 125V DC |
| Contact Resistance | 40 Milliohms Max. |
| Insulation Resistance | 1000 Megohms Min @500 Vdc. |
| Dielectric Strength | 1000 Vac Rms 60Hz, 1Min. |
| Physical Specifications | |
| Color | Resin Black |
| Durability (mating cycles max) | 2500 |
| Jack Height | 12.70mm |
| Light pipes/LEDs | None |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Gold over Palladium Nickel |
| Material - Plating Termination | Tin |
| Material - Resin | High Temperature Thermoplastic |
| Net Weight | 2.050/g |
| Orientation | Vertical (Top Entry) |
| Packaging Type | Embossed Tape on Reel |
| PCB Locator | No |
| PCB Retention | Yes |
| Pitch - Mating Interface | 1.02mm |
| Pitch - Termination Interface | 1.27mm |
| Plating min - Mating | 0.051µm, 1.016µm |
| Plating min - Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions / Loaded Contacts | 4/4 |
| Operating Temperature Range | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof / Dustproof | No |
