Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ROHS Compliant
Model Number: HD8004FNL
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $1.0-$2.5
Packaging Details: TAPE & REEL
Delivery Time: Ships within 1-2 weeks
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6.5million-PCS/Month
Number Of Channels/Ports: |
Single Port |
Mounting Style: |
SMT |
PoE Power Rating: |
60 W |
Data Rate: |
HD BASE-T |
Length: |
13.72 Mm |
Width: |
15.24 Mm |
Height: |
5.72 Mm |
Isolation Voltage (V): |
1500VAC |
Number Of Channels/Ports: |
Single Port |
Mounting Style: |
SMT |
PoE Power Rating: |
60 W |
Data Rate: |
HD BASE-T |
Length: |
13.72 Mm |
Width: |
15.24 Mm |
Height: |
5.72 Mm |
Isolation Voltage (V): |
1500VAC |

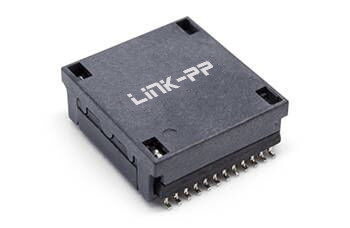

| Items/Part Number | HD8004FNL LAN Magnetic Module |
|---|---|
| Specification | IEEE 802.3 |
| Turns Ratio | 1.00 ± 2% |
| Polarity | Per Schematic |
| Insertion Loss | -3.0dB MAX @ 100 KHz -1.5dB MAX (-0.8dB TYP) @ 1-400 MHz |
| PHY-Side Return Loss |
-20dB MIN @ 1-40 MHz -20+10*log10(f/40) dB MIN @ 100-400 MHz |
| LINE-Side Return Loss |
-20dB MIN @ 1-40 MHz -20+10*log10(f/40) dB MIN @ 40-400 MHz |
| Inductance (OCL) | 180uH MIN @100 KHz, 100 mV |
| Cross |
-40dB MIN @ 1-100MHz -30dB MIN @ 100-400MHz |
| Common Mode Rejection Ratio |
-37dB MIN @ 1-100MHz -30dB MIN @ 100-300MHz -25dB MIN @ 300-500MHz |
| COMM to DIFF Rejection Ratio |
-40dB MIN @ 1-100MHz -30dB MIN @ 100-300MHz -25dB MIN @ 300-500MHz |
| DC Current Carrying Capability | 600 mA MAX @ 57 VDC |
| Input-Output Isolation | 1500vrms MIN @ 60 Seconds |
| Operating Temperature Range | 0°C - 70°C |
| Isolation (Pri: Sec) | 1500Vrms |
| Note | 4PAIR PoE 60W |
