Home > products > RJ45 Multi Port Jack > 62F-1201YGD2NL 1X2 RJ45 Connector With 10/100 Base-TX Magnetic

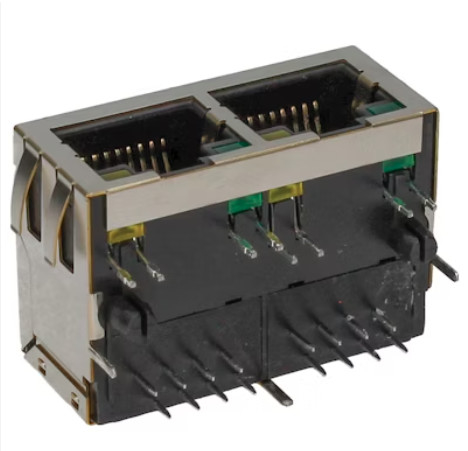

62F-1201YGD2NL 1X2 RJ45 Connector With 10/100 Base-TX Magnetic

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL, TUV, RoHS

Model Number: E5J88-00AJG2-L (LPJE201NNL)

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: $0.11-$10 The larger the quantity, the better the price

Packaging Details: Tray

Delivery Time: 3-5 days

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 300K/Month

Get Best Price
Highlight:

62F-1201YGD2NL

,

1X2 RJ45 Magnetic Jack

,

62F-1201YGD2NL RJ45 1x2

Number Of Ports:
1x2
Latch:
Down
Shield EMI Tabs:
With
LED Option:
Yellow-Green
Gender:
Female
Alignment:
90 °
Mounting Type:
Through Hole
Shielding:
YES
Number Of Ports:
1x2
Latch:
Down
Shield EMI Tabs:
With
LED Option:
Yellow-Green
Gender:
Female
Alignment:
90 °
Mounting Type:
Through Hole
Shielding:
YES
62F-1201YGD2NL 1X2 RJ45 Connector With 10/100 Base-TX Magnetic



100Base-Filter 1x2 Tab-Down Jack 62F-1201YGD2NL

Overview of 2F-1201YGD2NL RJ45 Connector:

62F-1201YGD2NL is a high-performance RJ45 connector featuring a 1x2 tab-down jack with integrated 10/100 Base-TX magnetic components. This female connector is designed for through-hole technology (THT) and provides reliable and robust connections for various networking applications.



Features:

  1. Integrated LAN magnetics for enhanced performance.
  2. Suitable for CAT 5 & 6 cables and UTP.
  3. Compliant with IEEE 802.3 standards.
  4. Designed to support various applications such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), hubs, and switches.
  5. Available with or without LEDs, enhancing link activity and network speed verification.
  6. Suitable for RoHS-compliant reflow processes.

1X2 RJ45 Connector Specifications:

1. Physical Characteristics:

  • Alignment: 90°
  • Connection Type: PCB THT (Through-Hole Technology)
  • Shielding: Yes
  • Locking Type: Latch-Lock
  • Height: 13.6 mm
  • Network Category: CAT 5
  • Number of Ports: 2
  • Number of Positions/Contacts: 8P8C
  • LEDs: Green on the left, Yellow on the right
  • Contact Plating: 6 micro-inches gold in the contact area
  • Housing Material: Thermoplastic UL94V-0
  • Contact/Shield Material: Copper alloy
  • Shield Plating: Nickel



2. Electrical Specifications (at 25℃):

  • Turns Ratio (±2%): TX=1CT:1CT, RX=1CT:1CT
  • Inductance (100KHz/0.1V @ 8mA): 350µH MIN
  • Insertion Loss (dB TYP): -1.2dB (0.3-100MHz)
  • Return Loss (dB TYP):
    • -18dB (1-10MHz)
    • -16dB (30MHz)
    • -12dB (60-80MHz)
  • Crosstalk (dB TYP):
    • -40dB (1-10MHz)
    • -35dB (30-60MHz)
    • -30dB (60-100MHz)
  • CMR (dB TYP):
    • -30dB (1-50MHz)
    • -20dB (50-130MHz)
  • Hi-Pot: 1500Vrms MIN
  • Operating Temperature: 0℃ to +70℃
  • RoHS Compliance: Yes



62F-1201YGD2NL Mechanicals:

62F-1201YGD2NL 1X2 RJ45 Connector With 10/100 Base-TX Magnetic 0

62F-1201YGD2NL Schematics:

62F-1201YGD2NL 1X2 RJ45 Connector With 10/100 Base-TX Magnetic 1

Notes:

1. This connector supports various applications, including SOHO (ADSL modems), LAN-on-Motherboard (LOM), hubs, and switches.

2. Compliance with IEEE 802.3 specifications.

3. Constructed with high-quality materials including thermoplastic UL94V-0 housing, copper alloy contacts, and nickel shield plating.

4. Recommended wave soldering tip temperature is a maximum of 265℃ for no more than 5 seconds.
