Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specifications:	J0006D21NL	Specification:	LPJ0006CNL
Mounting:	THT PCB	Apllication:	10/100 Or 1000Base-T(x)
Original Munafactuer:	LINK-PP	Samples:	Available

Specifications:	J0006D21NL
Specification:	LPJ0006CNL
Mounting:	THT PCB
Apllication:	10/100 Or 1000Base-T(x)
Original Munafactuer:	LINK-PP
Samples:	Available

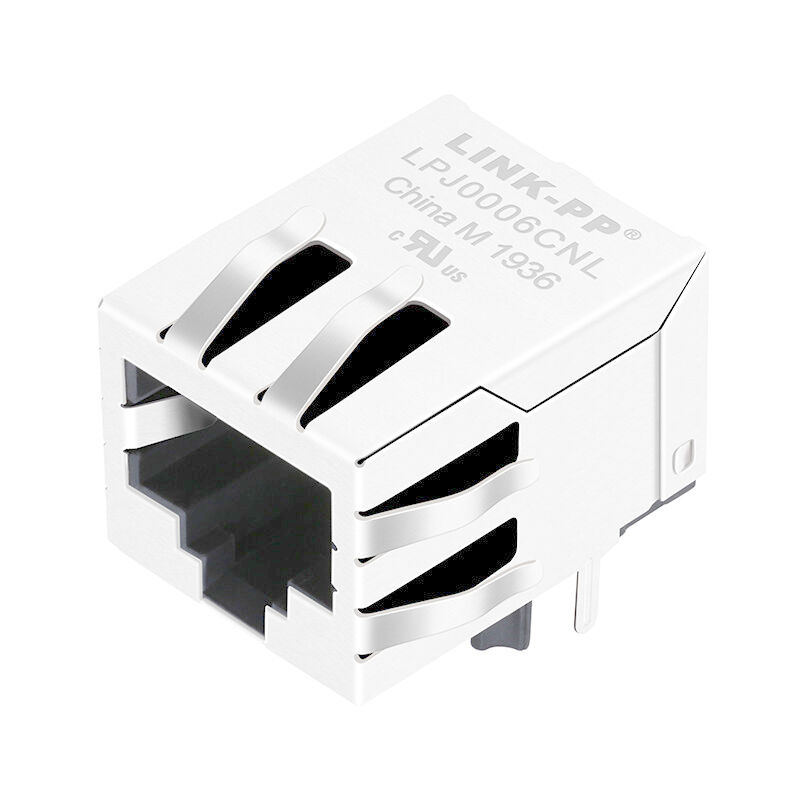

J0006D21NL | LPJ0006CNL 10/100 Base-TX AutoMDIX 90° Angle THT

J0006D21NL | LPJ0006CNL 10/100 Base-TX AutoMDIX 90° Angle THT

Specifications

P/N

Manufacturer

Description

J0006D21NL

LPJ0006CNL

LINK-PP

Rj45 1x10/100 R/A RoHS

Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

LINK-PP Female Rj45

10/100BT

Thru-Hole

Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

Optional

EMI-Finger(With Or Wi)

RJ-45 connector integrated with Filter
Size same as RJ-45 connector to save PCB board space
Reduce EMI radiation, Improve EMI performance

High performance for maximum EMI suppression.
ISO9001,SGS,UL,CE,REACH
Embedded mini PCI express Cellular modemfrom SierraWireless
Reduce EMI radiation, Improve EMI performance
Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
Multi-port and Stackable configurations (Thru-hole/ SMT)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
100 Base-TX (Fast Ethernet) RJ45 1x1 Tab-DOWN with LEDs 8-pin
