Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499011212A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
7499011212A |
Made In China: |
SM-LPJ0011ABNL |
Category: |
Transformer Rj45 |
Apllication: |
10/100BT |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke,Jabil,Flextronics |
Part Number: |
7499011212A |
Made In China: |
SM-LPJ0011ABNL |
Category: |
Transformer Rj45 |
Apllication: |
10/100BT |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke,Jabil,Flextronics |
|
Part Number
|
Made In China
|
Manufacturer
|
Description
|
|

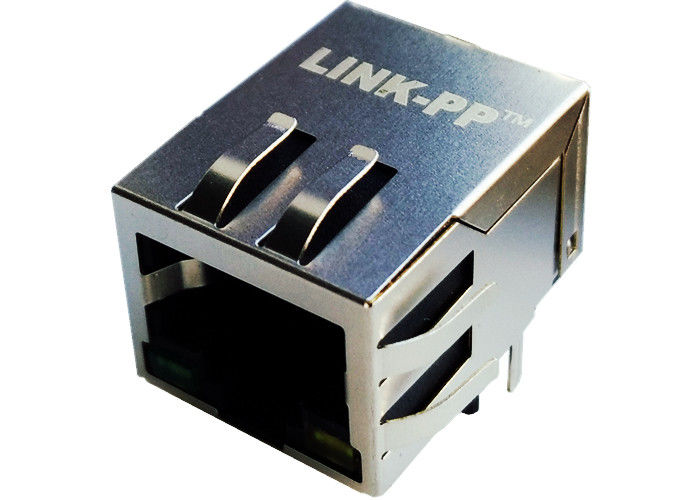

7499011212A
|
SM-LPJ0011ABNL
|
LINK-PP
|
SIN Rj45 10/100BT
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Female Rj45
|
10/100
|
Thru-Hole(SMT Optional)
|
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
90° Angle (Right)
|
Solder
|
Optional
|
(Un)Shielded,EMI-Finger
|
|
ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%): TX=1CT:1 RX=1CT:1 2.Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1.0-100MHz 4.Return Loss: -18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz -10dB MIN @ 80-100MHz 5.Cross talk: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 6.Common Mode Rejection: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 7.Hipot: 1500Vrms 8.LED Lamp: Wave Length:GREEN/YELLOW:570nm/590nm Forward Voltage(Vf): 1.8V-2.4V (Test Condition: 20mA) 9.Operating Temperature Range:0℃ TO 70℃ |
|||
