Home > products > Magnetic RJ45 Jack > J00-0065NL RJ45 MagJack LPJ0011ABNL 10/100 Base-TX , AutoMDIX Shielded , EMI Finger

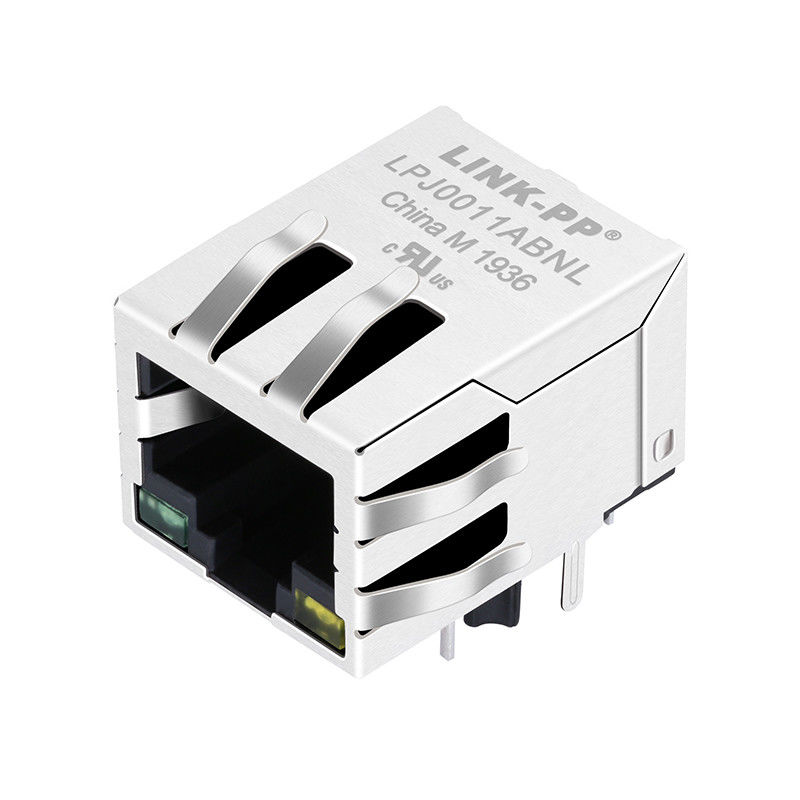

J00-0065NL RJ45 MagJack LPJ0011ABNL 10/100 Base-TX , AutoMDIX Shielded , EMI Finger

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: J00-0065NL

Payment & Shipping Terms

Minimum Order Quantity: 25pcs

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

J00-0065NL

,

RJ45 Jack with Magnetics

,

100Base-TX RJ45 MagJack

Part Number:
J00-0065NL (LPJ0011ABNL)
Gender:
RJ45 Female Connector
Apllication:
10/100 Or 1000Base-T(x)
Termination:
Solder
Feature:
Lead Free
Operating Temperature:
0°C ~ 70°C
PCB Mount Angle:
SIDE ENTRY
Part Number:
J00-0065NL (LPJ0011ABNL)
Gender:
RJ45 Female Connector
Apllication:
10/100 Or 1000Base-T(x)
Termination:
Solder
Feature:
Lead Free
Operating Temperature:
0°C ~ 70°C
PCB Mount Angle:
SIDE ENTRY
J00-0065NL RJ45 MagJack LPJ0011ABNL 10/100 Base-TX , AutoMDIX Shielded , EMI Finger

J00-0065NL RJ45 MagJack LPJ0011ABNLShielded with EMI Finger

Overviews:



  • Product Name: RJ45 Connector with 10/100 Base-T Integrated Magnetics
  • Number of Ports: 1x1 Port
  • Mounting Type: Through Hole
  • LED L / R Color: Green / Yellow
  • Number of Positions/Contacts:8P8C
  • Latch: Tab-DOWN
  • Applications: 10/100 Base-TX AutoMDIX



LPJ0011ABNL (J00-0065NL) Datasheet:

LPJ0011ABNL.pdf



Technical Parameters:



Pulse Model  J00-0065NL LINK-PP Model  LPJ0011ABNL
Product Category  Magnetic RJ45 Jack Style  Shielded Jack
No of Positions  1 No of Rows  1
Contact Material  Phosphor Bronze Contact Plating  Gold
Mounting Method  Through Hole Orientation  90 Degree Angle (Right)
LED Option   Left Green/ Right Yellow Shield EMI Tabs  Top and Side
Housing Material  PBT+30%G.F Pins Material  Brass
Termination Type  Solder POE  NOE
Total Number of Contacts  8 Number of Positions Loaded  8
Operating Temp Range  0°C to 70°C Moisture Sensitivity Level  1
Turns Ratio RX/TX  1CT:1CT Configuration RX/TX  T, C
Durability:  750 Cycles AutomDX   YES



Features of RJ45 MagJack:



  1. RJ-45 connector integrated with Filter
  2. Compact design to save PCB board space
  3. High performance for Reducing EMI radiation
  4. ISO9001, SGS, UL, CE, REACH Approved
  5. Embedded mini PCI express Cellular modem from SierraWireless
  6. Certified on all major carrier networks
  7. Reduces the number of components to be placed on the board
  8. Frees up board space and offers signal protection
  9. Noise reduction in the system



Quality Control of RJ45 Jack with Magnetics



  • Raw-material traceability identification
  • Finished product inspection
  • Electrical Testing
  • Mechanical Testing
  • Environmental Testing
  • EMI/EMC Testing
  • Reliability Testing
  • Traceability and Documentation
